MIL-STD-1330D(SH) APPENDIX D

w/ Change 1

TABLE D-V. 5 PPM acceptance criteria for sample.

Acceptance Criteria	Action
Reading < [Clean Dish Acceptance Criteria] + [50 counts] and Reading > Dish 5 ppm Acceptance Criteria	Results are acceptable. Report as less than 5 ppm oil and grease and log on data sheet 4.
Reading < Dish 5 ppm Acceptance Criteria	Results are not acceptable. Reclean the instrument.
Reading > [Clean Dish Acceptance Criteria] + [50 counts]	Results are not acceptable. Reclean the instrument.

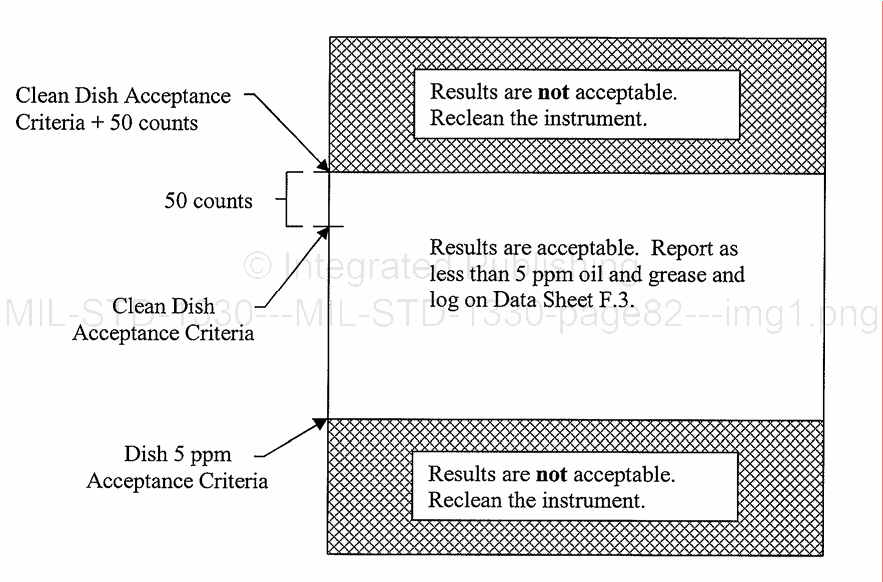

FIGURE 5. 5 PPM acceptance criteria for sample.

Not To Scale
