MS33786B
Size code number |
Nominal tube and hose size (ref) inch (mm) |
C dia. +.000 -.005 (0.13) inch (mm) |
D ±.005 (0.13) inch (mm) |
E inch (mm) |
|
-8 |
.500 (12.70) |
.875 (22.23) |
.950 (24.13) |
1.390 (35.31) |
±.016 (0.41) |
-10 |
.625 (15.88) |
1.000 (25.40) |
1.308 (33.22) |
1.468 (37.29) |
|
-12 |
.750 (19.05) |
1.125 (28.580 |
1.156 (29.36) |
1.594 (40.49) |
|
-12-16 |
1.500 (38.10) |
1.312 (33.32) |
1.750 (44.45) |
||
-16 |
1.000 (25.40) |
||||
-20 |
1.250 (31.75) |
1.844 (46.84) |
1.656 (42.06) |
2.188 (55.58) |
±.020 (0.51) |
-20-24 |
2.125 (53.98) |
1.812 (46.02) |
2.375 (60.33) |
||
-24 |
1.500 (38.10) |
||||
-32 |
2.000 (50.80) |
2.750 (69.85) |
2.375 (60.33) |
3.000 (76.20) |
|

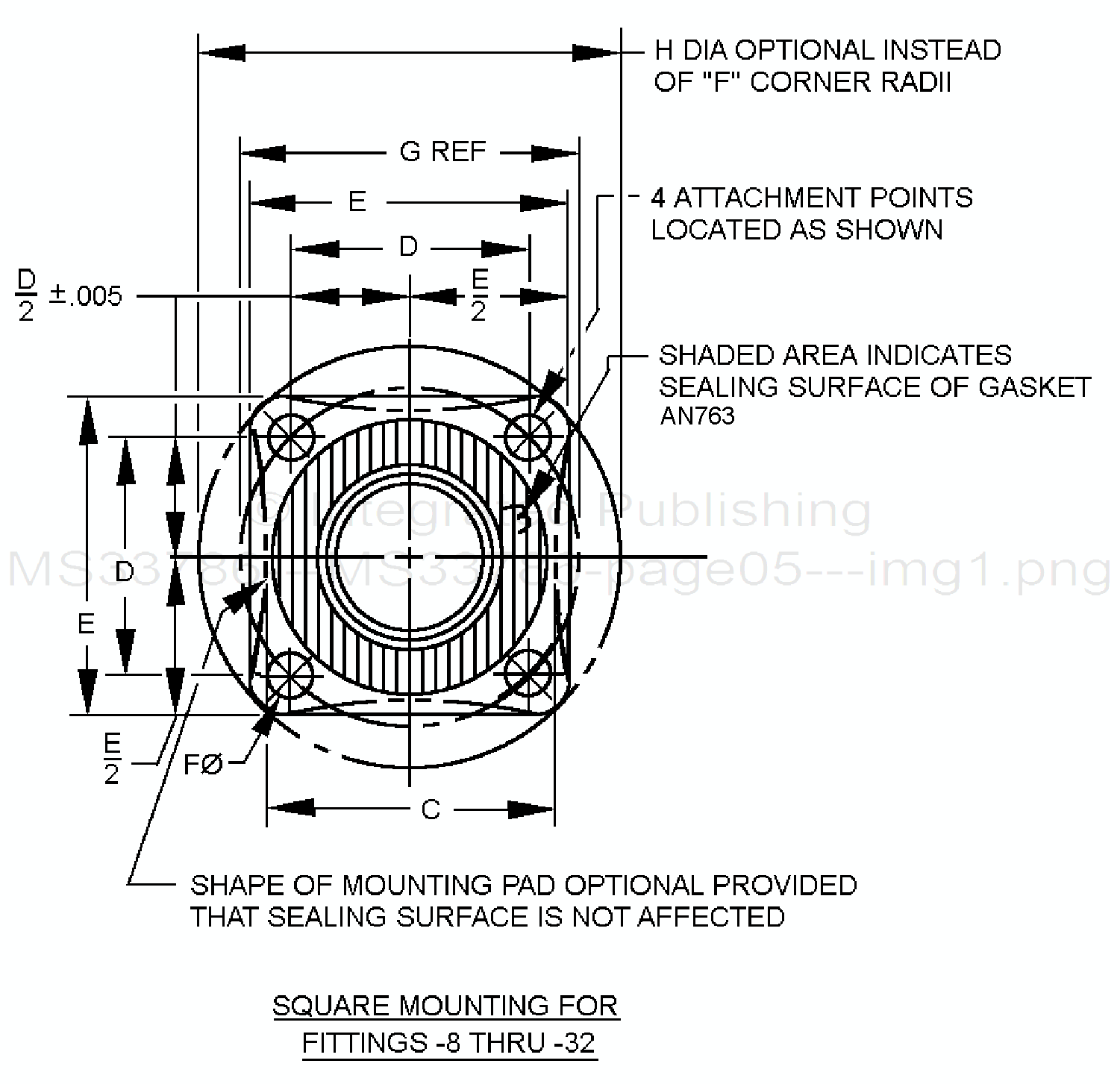

FIGURE 3. Square mounting for fittings -8 through -32, dimensions and configuration.
