MS33786B
Size code number |
Thread J in accordance with MIL-S-7742 (see note 5) |
K inch (mm) |
L inch (mm) |
N inch (mm) |
-8 |
10-32NF-3A |
.625 (15.88) |
.500 (12.70) |
.281 (7.14) |
-10 |
||||
-12 |
||||
-12-16 |
||||
-16 |
||||
-20 |
.2500-28UNF-3A |
.688 (17.48) |
.562 (14.27) |
.375 (9.53) |
-20-24 |
.750 (19.05) |
.625 (15.88) |
||
-24 |
||||
-32 |
.3125-24UNF-3A |
.812 (20.62) |
.688 (17.48) |
.469 (11.91) |
-40 |
||||
-48 |

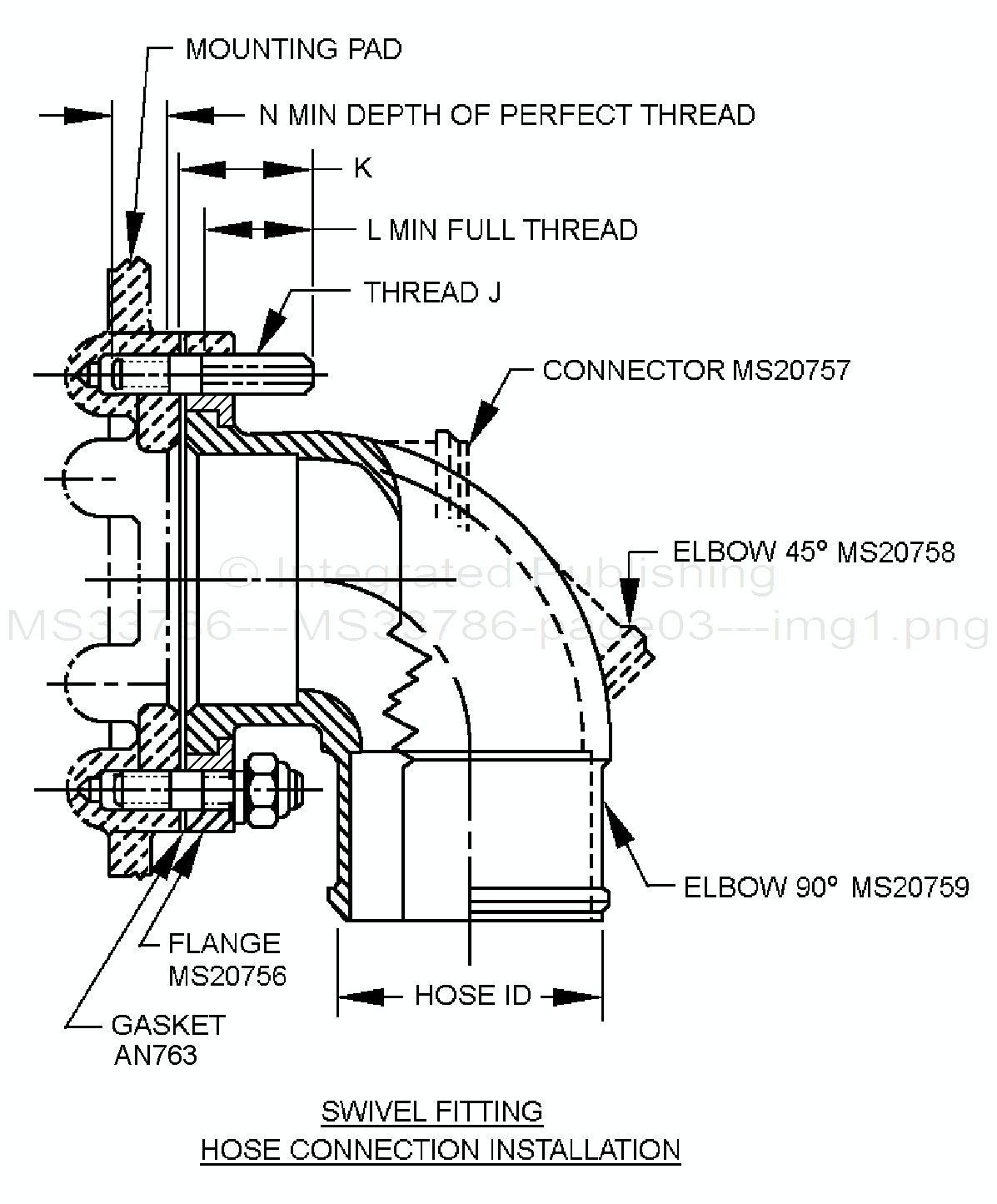

FIGURE 2. Installation swivel fitting, hose connection, dimensions and configurations.
3
