MS273950
Size and material code |
B min Inches (mm) |
E Inches (mm) |
||
CRES |
Al |
|||
-3/-4C |
--- |
.870 (22.10) |
.25 (6.35) |
±.05 (1.3) |
-4C |
--- |
|||
-5C |
--- |
.890 (22.61) |
||
-6C |
--- |
|||
-8C |
-80 |
1.030 (26.16) |
.32 (8.1) |
±.12 (3.0) |
-10C |
-100 |
1.130 (28.70) |
.35 (8.9) |
±.15 (3.80) |
-12C |
-120 |
1.240 (31.50) |
||
-16C |
-160 |
1.340 (34.04) |
.39 (9.9) |
±.19 (4.8) |
-20C |
-200 |
1.570 (39.88) |
.48 (12.2) |
±.28 (7.1) |
-24C |
-240 |
1.720 (43.69) |
.50 (12.7) |
±.30 (7.6) |

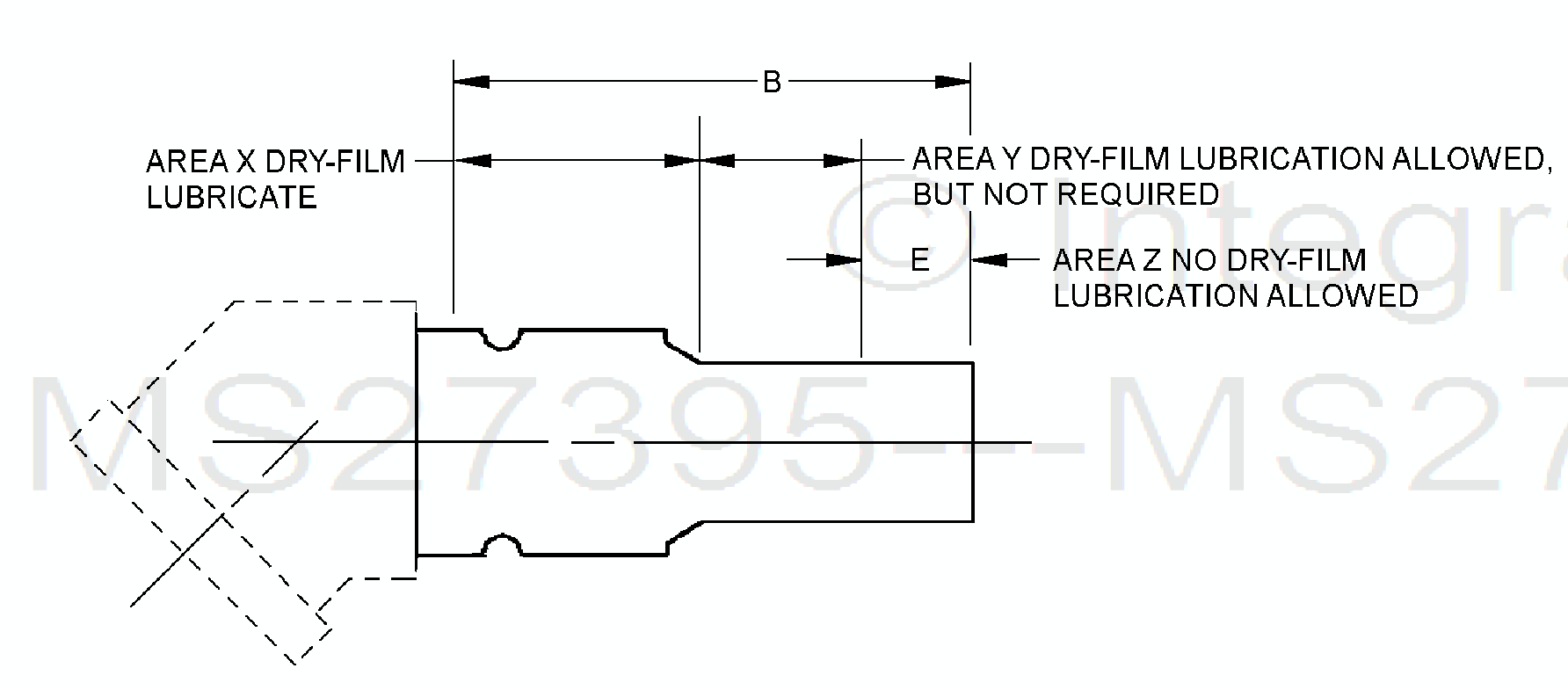

FIGURE 2. 0ry film lubrication area.
