MS27076E
TABLE I. Materials and material codes.
Material code |
Material |
C |
Corrosion-resistant steel (CRES), class 304 or 321 cold drawn or cold rolled in accordance with SAE-AMS-QQ-S-763, SAE-AMS5639, or SAE-AMS5645. |
0 |
Aluminum alloy, 6061-T6 or T651 in accordance with SAE-AMS-QQ-A-367, SAE-AMS4117 or alloy 7075-T73, 7075-T7351 in accordance with SAE-AMS-QQ-A-225/9 or alloy 7055-T7351 in accordance with SAE-AMS4124. |
Finish:
Corrosion-resistant steel, passivate in accordance with SAE-AMS2700, method 1, type 6 or 7. Aluminum alloy anodize in accordance with MIL-A-8625, type II, dye blue.
0ry film lubricant. 0ry film lubricate in accordance with figure 2 and table II.
Size and material code |
E inch (mm) |
L min inch (mm) |
||
CRES |
Al |
|||
-8C |
-80 |
.32 (8.1) |
±.12 (3.0) |
1.030 (26.16) |
-10C |
-100 |
.35 (8.9) |
±.15 (3.8) |
1.130 (28.70) |
-12C |
-120 |
1.240 (31.50) |
||
-16C |
-160 |
.39 (9.9) |
±.19 (4.8) |
1.340 (34.04) |
-20C |
-200 |
.48 (12.1) |
±.28 (7.1) |
1.570 (39.88) |
-24C |
-240 |
.50 (12.7) |
±.30 (7.6) |
1.720 (43.69) |
NOTES:
1. 0imensions are in inches.
2. Metric equivalents are given for information only.

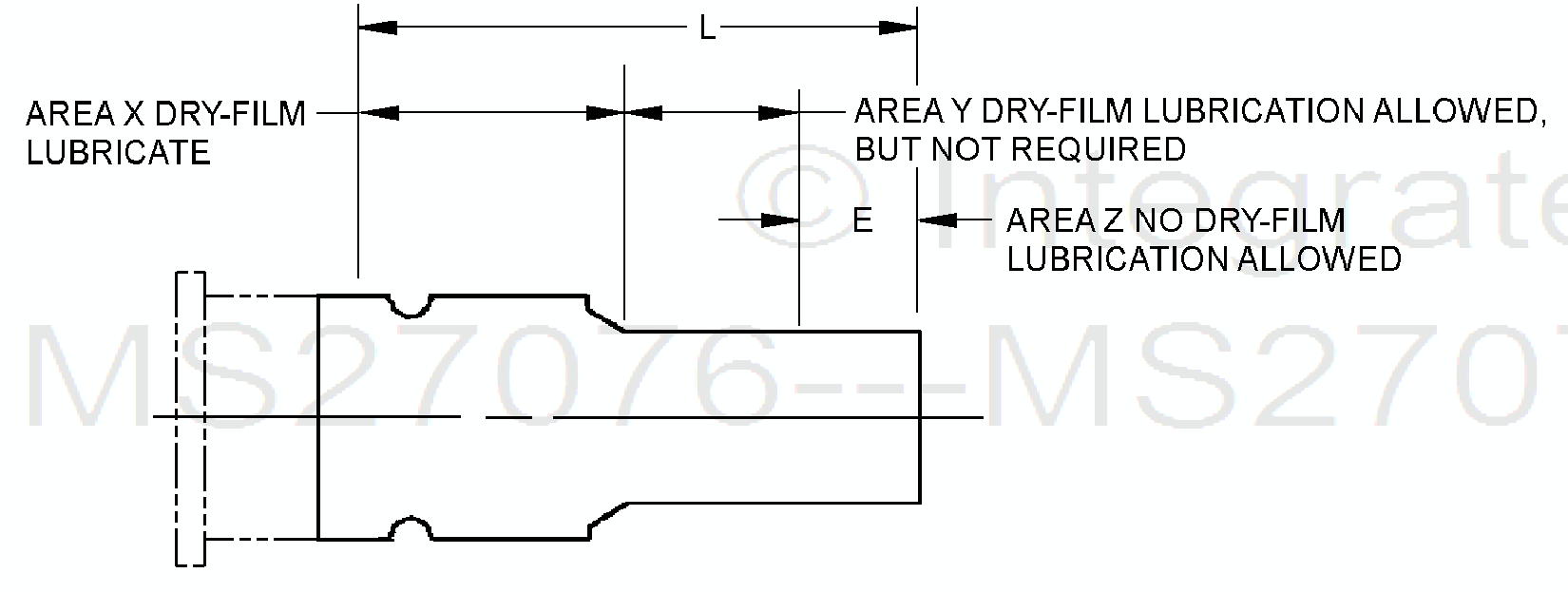

FIGURE 2. 0ry-film lubrication area.
