MS27076E
Size and material code |
A min (see note 3) inch (mm) |
B ±0.015 (0.38) inch (mm) |
C inch (mm) |
0 +0.005 -0.000 (0.13) inch (mm) |
|||
Corrosion resistant steel (CRES) |
Aluminum (Al) |
CRES |
Al |
||||
-8C |
-80 |
.617 (15.67) |
1.797 (45.64) |
.098 (2.49) |
+.004 (0.01) -.000 |
.385 (9.78) |
.385 (9.78) |
-10C |
-100 |
.654 (16.61) |
1.902 (48.31) |
.420 (10.67) |
.427 (10.85) |
||
-12C |
-120 |
.755 (19.18) |
2.107 (53.52) |
.128 (3.25) |
+.005 (0.13) -.000 |
.500 (12.70) |
.500 (12.70) |
-16C |
-160 |
.831 (21.11) |
2.193 (55.70) |
.545 (13.84) |
.545 (13.84) |
||
-20C |
-200 |
.881 (22.38) |
2.457 (62.40) |
.565 (14.35) |
.571 (14.48) |
||
-24C |
-240 |
1.035 (26.29) |
2.605 (66.17) |
.665 (16.89) |
.665 (16.89) |
||
Size and material code |
F ±.010 inch (mm) |
G dia. +.000 -.005 (0.13) inch (mm) |
H dia. ±.005 (0.13) inch (mm) |
J dia. (see note 3) +.005 (0.13) -.000 inch (mm) |
K inch (mm) |
||
CRES |
Al |
||||||
-8C |
-80 |
1.197 (30.40) |
.431 (10.95) |
.530 (13.46) |
.616 (15.65) |
.020 (0.51) |
+.005 (0.13) -.000 |
-10C |
-100 |
1.252 (38.74) |
.531 (13.49) |
.625 (15.88) |
.706 (17.93) |
±.005 (0.13) |
|
-12C |
-120 |
1.432 (36.37) |
.655 (16.36) |
.760 (19.30) |
.826 (20.98) |
.030 (0.76) |
|
-16C |
-160 |
1.463 (37.16) |
.905 (22.99) |
1.040 (26.42) |
1.150 (29.21) |
||
-20C |
-200 |
1.522 (38.66) |
1.156 (29.36) |
1.275 (32.39) |
1.405 (35.69) |
||
-24C |
-240 |
1.625 (41.28) |
1.406 (35.71) |
1.550 (39.37) |
1.635 (41.53) |
.035 |
|

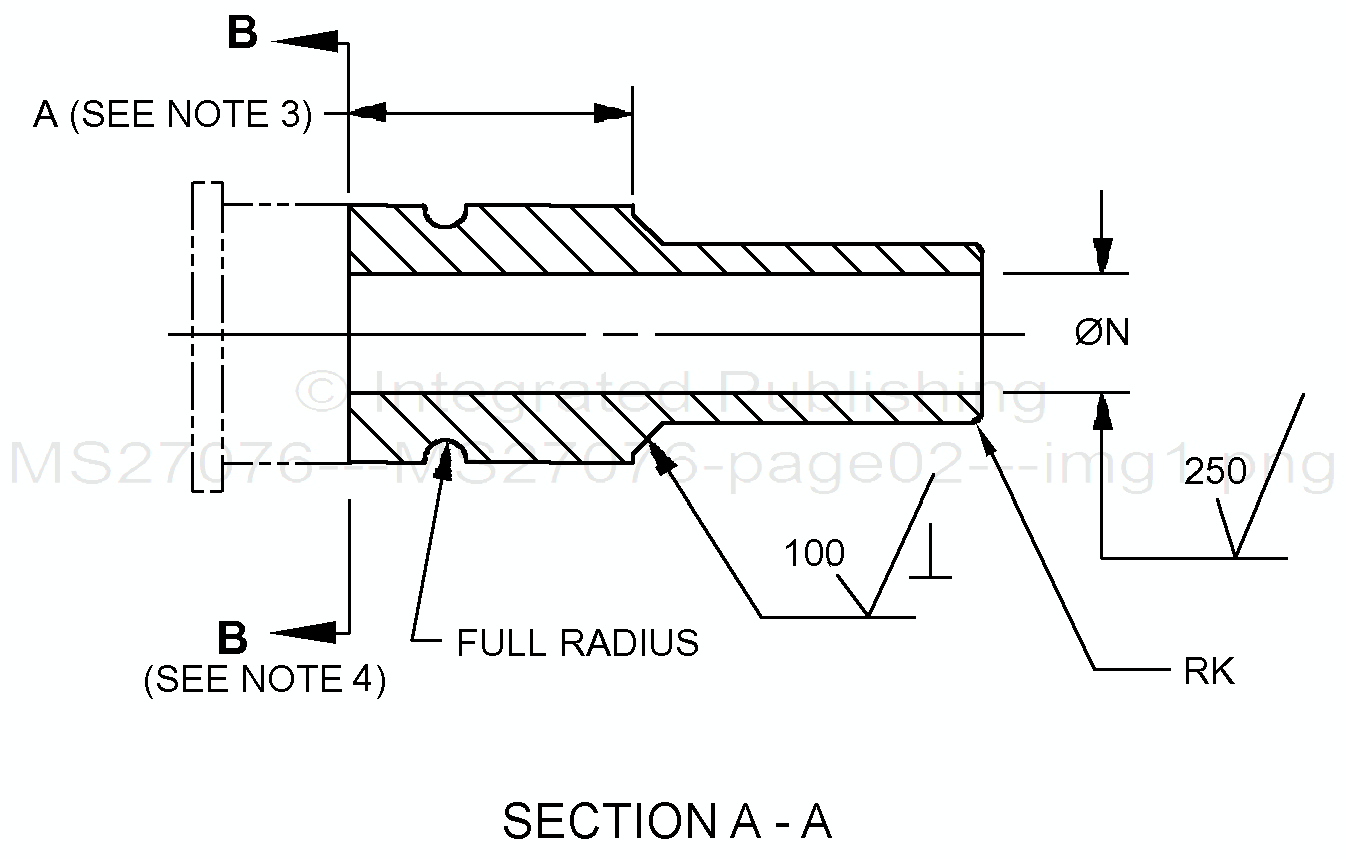

FIGURE 1. Nipple illustration - Continued.
