MIL-DTL-5513D
1.5 Styles. Hydraulic swivel joints covered by this specification are of the following styles:
Style a
-
Plane swivel: Able to swivel (rotate) in a single plane only, see figure 1.
Style b
-
Angular misalignment swivel: Able to swivel and compensate for a conical axial
motion of 5 minimum to 7.5 maximum degrees (total axial motion of 10 to 15
degrees).
Style c
-
Other styles: Other swivel requirements, or other styles of swivel joints, such as
joints incorporating sliding features, are covered by this specification, see figure 2.
NOTE: Figure not meant to limit designs.

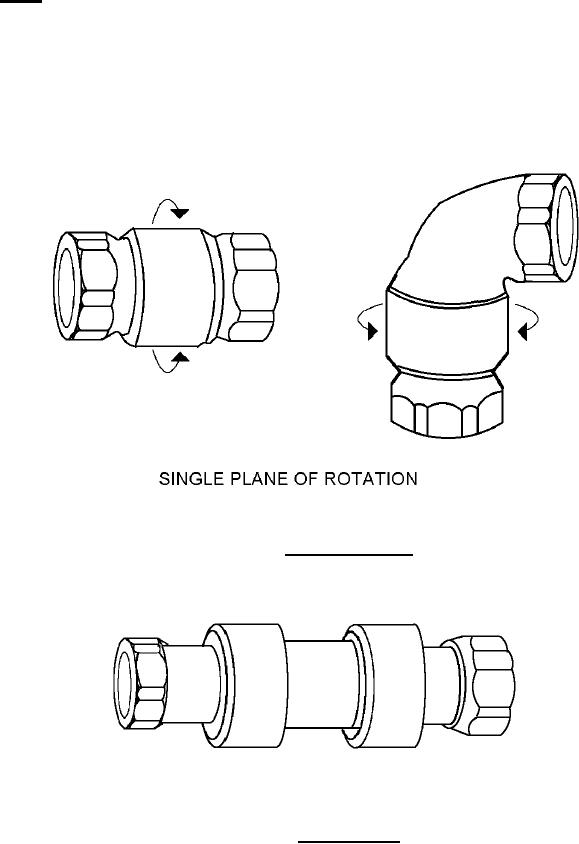

FIGURE 1. Style A plane swivel.
NOTE: Figure not meant to limit designs.
FIGURE 2. Style C slip joint.
4
