INCH-POUND
MIL-DTL-52525/12D
21 April 2011
SUPERSEDING
MIL-DTL-52525/12C
20 November 2008
DETAIL SPECIFICATION SHEET
FITTINGS, HOSE, SCREW ON TO SPLIT-FLANGE 90° BENT
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet
and MIL-DTL-52525.
Hose
Flange
B
Part or Identifying
A max
ID ref
size
inches (mm)
Number (PIN)
inches (mm)
±0.12 (3.1)
inches (mm)
inches (mm)
hose - flange
M52525/12-8-8
.500 (12.70)
.500 (12.70)
3.65 (92.71)
1.63 (41.40)
M52525/12-12-12
.750 (19.05)
.750 (19.05)
4.40 (111.76)
2.13 (54.10)
M52525/12-12-16
.750 (19.05)
1.000 (25.40)
4.40 (111.76)
2.13 (54.10)
M52525/12-16-16
1.000 (25.40)
1.000 (25.40)
5.14 (130.56)
2.38 (60.45)
M52525/12-16-20
1.000 (25.40)
1.250 (31.75)
5.14 (130.56)
2.38 (60.45)
M52525/12-20-20
1.250 (31.75)
1.250 (31.75)
6.33 (160.78)
2.62 (66.55)
M52525/12-20-24
1.250 (31.75)
1.500 (38.10)
6.33 (160.78)
2.69 (68.33)
M52525/12-24-24
1.500 (38.10)
1.500 (38.10)
7.01 (178.05)
3.12 (79.25)
M52525/12-32-32
2.000 (50.80)
2.000 (50.80)
8.62 (218.95)
4.50 (114.30)

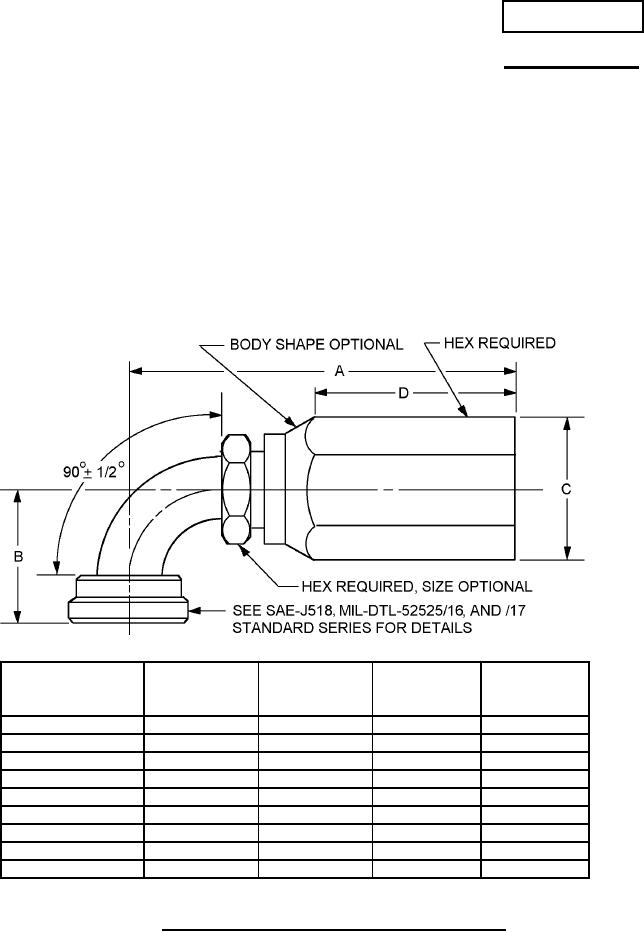

FIGURE 1. Fitting, screw-on to 4-bolt split-flange, 90° bent tube.
AMSC N/A
FSC 4730
