INCH-POUND
MIL-DTL-32480/5
12 September 2014
DETAIL SPECIFICATION SHEET
FITTING, ADAPTER, 45° ELBOW, HYDRAULIC AND PNEUMATIC,
FLARELESS MALE TO ORFS BULKHEAD
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet
and MIL-DTL-32480.
Tube OD
T
TT
Dash
nom.
ORFS
Flareless
size
inches (mm)
SAE J1453-1
SAE AS8879
-4
.2500 (6.350)
0.5625-18UNF-2A
.4375-20 UNJF-3A
-6
.3750 (9.525)
0.6875-16UN-2A
.5000-20 UNJF-3A
-8
.5000 (12.700)
0.8125-16UN-2A
.7500-16 UNJF-3A
-10
.6250 (15.875)
1.0000-14UN-2A
.8750-14 UNJF-3A
-12
.7500 (19.050)
1.1875-12UN-2A
1.0625-12 UNJ-3A
-16
1.0000 (25.400)
1.4375-12UN-2A
1.3125-12 UNJ-3A
-20
1.2500 (31.750)
1.6875-12UN-2A
1.6250-12 UNJ-3A
-24
1.5000 (38.100)
2.0000-12UN-2A
1.8750-12 UNJ-3A

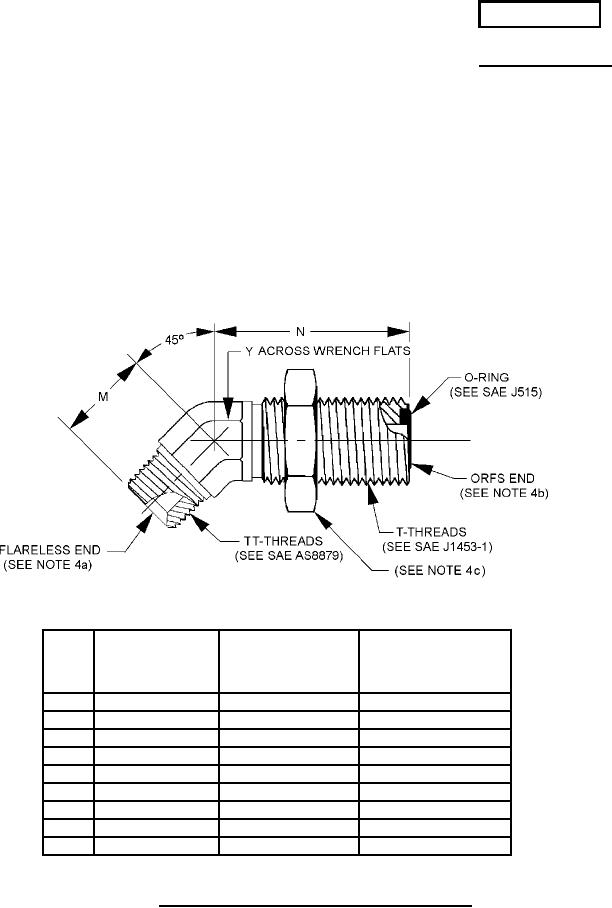

FIGURE 1. 45° elbow, flareless to bulkhead ORFS adapter.
AMSC N/A
FSC 4730
