MIL-DTL-22263C
3.6 O-ring seal. The O-ring seal used for testing purposes shall be in accordance with
MIL-DTL-25988 of the applicable size specified in table II. The seals shall be easily replaceable
without damage to the coupling parts and with a minimum of disturbance or displacement of the
installed tubing or fitting. The O-ring seals shall not be subjected to axial loads of tubing under
pressure.

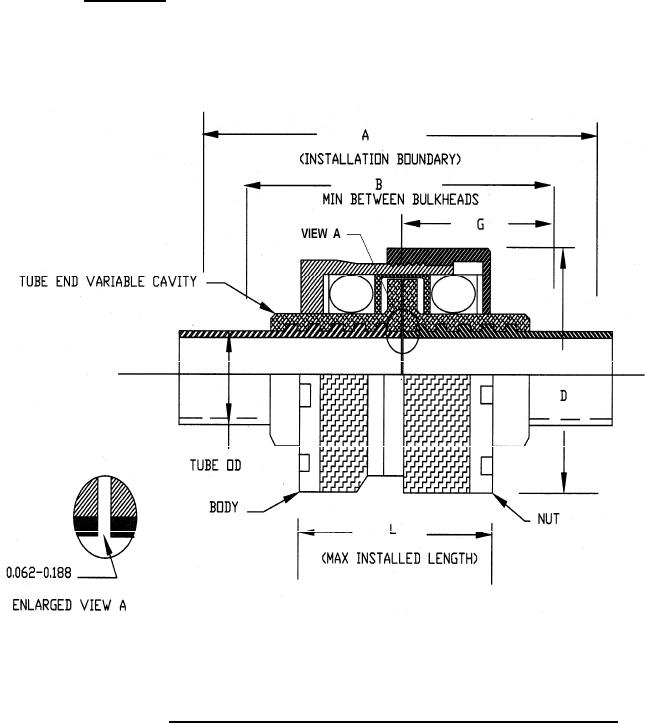

FIGURE 1. Coupling installation connecting two swaged ferrule fuel lines.
6
