INCH-POUND
MS9313B
16 February 2010
SUPERSEDING MS9313A (ASG)
12 August 1964
DETAIL SPECIFICATION SHEET CAP, TUBE - SAE-AMS5646
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet.
Inches |
mm |
.005 |
0.13 |
.010 |
0.25 |
.060 |
1.52 |
.090 |
2.29 |
.125 |
3.18 |
.160 |
4.06 |

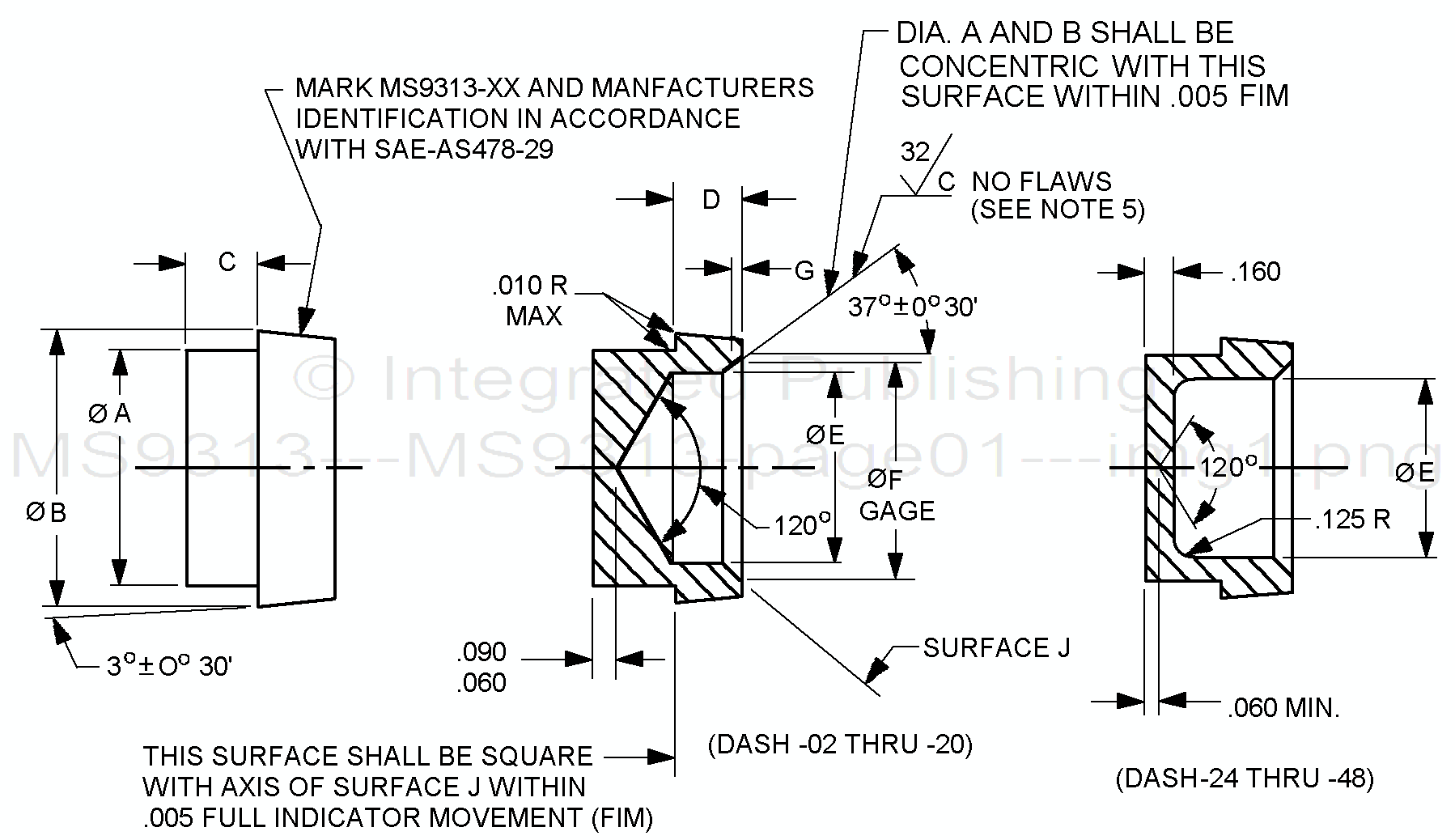

FIGURE 1. Cap, tube.
AMSC N/A FSC 4730
