INCH-POUND
MS39212J
30 August 2012
SUPERSEDING MS39212H
24 March 2008
DETAIL SPECIFICATION SHEET
SLEEVES, COMPRESSION, TUBE - HOSE FITTING- SAFETY SLEEVE TYPE
Inactive for new design after 29 December 1967. For new design, use SAE-J514.
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet.
Inches |
mm |
.007 .015 |
0.18 0.38 |

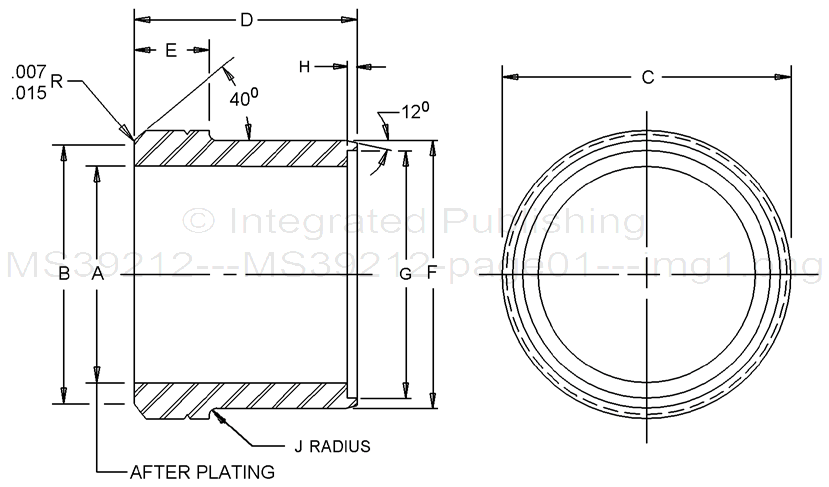

FIGURE 1. Sleeves, compression, tube - hose fitting - safety sleeve type.
AMSC N/A FSC 4730
