MS39135G
TABLE I. Nut materials.
MS dash number |
Material |
-1-B |
Brass |
-1-S |
Steel |
NOTES:
1. All dimensions are in inches.
2. Metric equivalents are given for information only.
3. For design feature purposes, this document takes precedence over acquisition documents referenced herein.
4. In the event of a conflict between the text of this specification sheet and the references cited herein, the text of this specification sheet shall take precedence.
5. Part or Identifying Number (PIN).
Example of a PIN: MS39135-1-B.
FIGURE 1. Hose coupling nut - Continued.
Inches |
mm |
Inches |
mm |
0.005 |
0.127 |
0.875 |
22.225 |
0.07 |
1.778 |
0.915 |
23.241 |
0.25 |
6.350 |
1.25 |
31.750 |
0.70 |
17.780 |

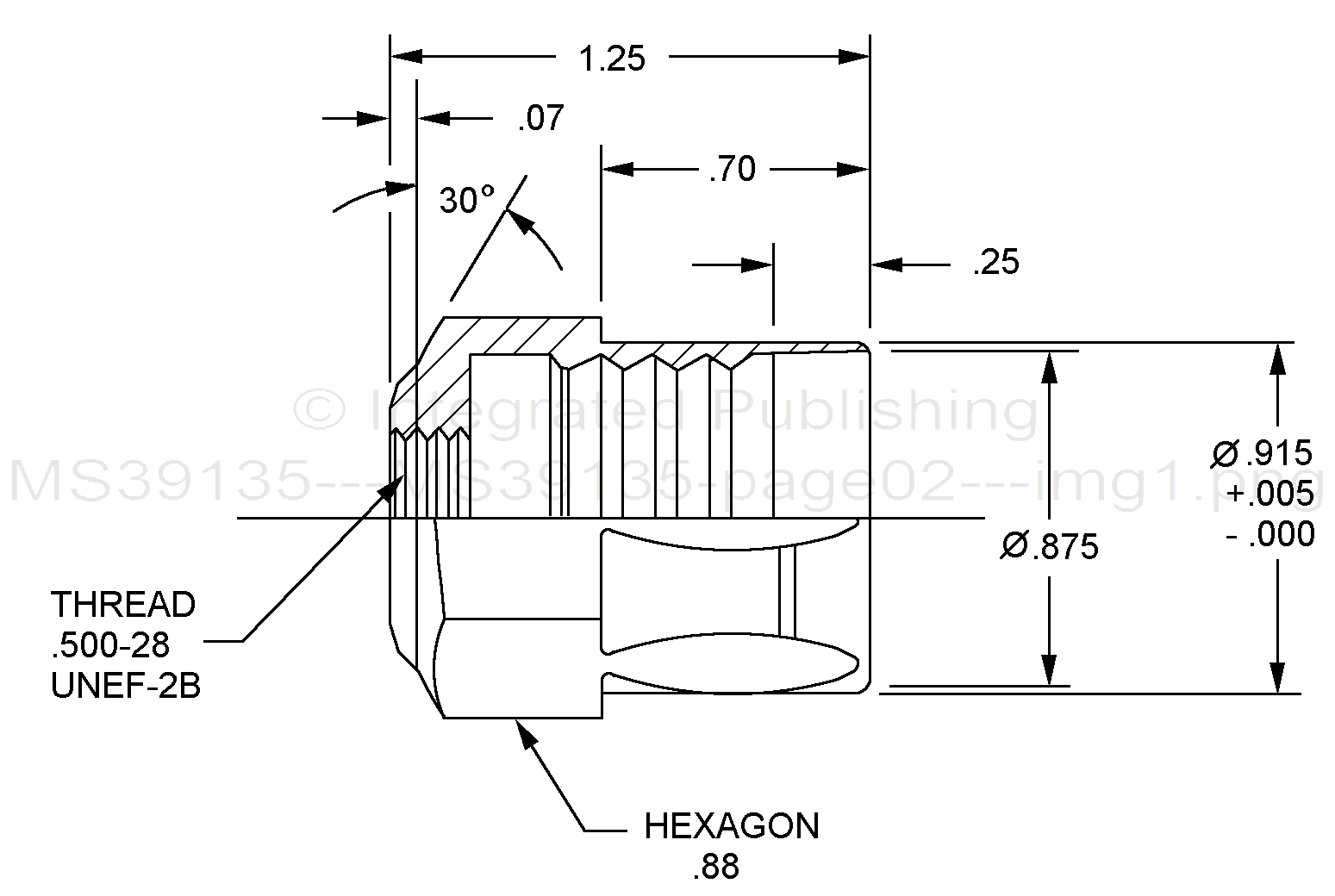

FIGURE 2. Alternate design, hose coupling, nut.
2
