MS39133G
TABLE I. Adapter dimensions and materials.
MS dash no. |
Pipe end (NPTF Short) |
Material for MS39135 MS39136 MS39137 |
-1-B |
1/4 |
Brass |
-1-S |
Steel |
|
-2-B |
1/2 |
Brass |
-2-S |
Steel |

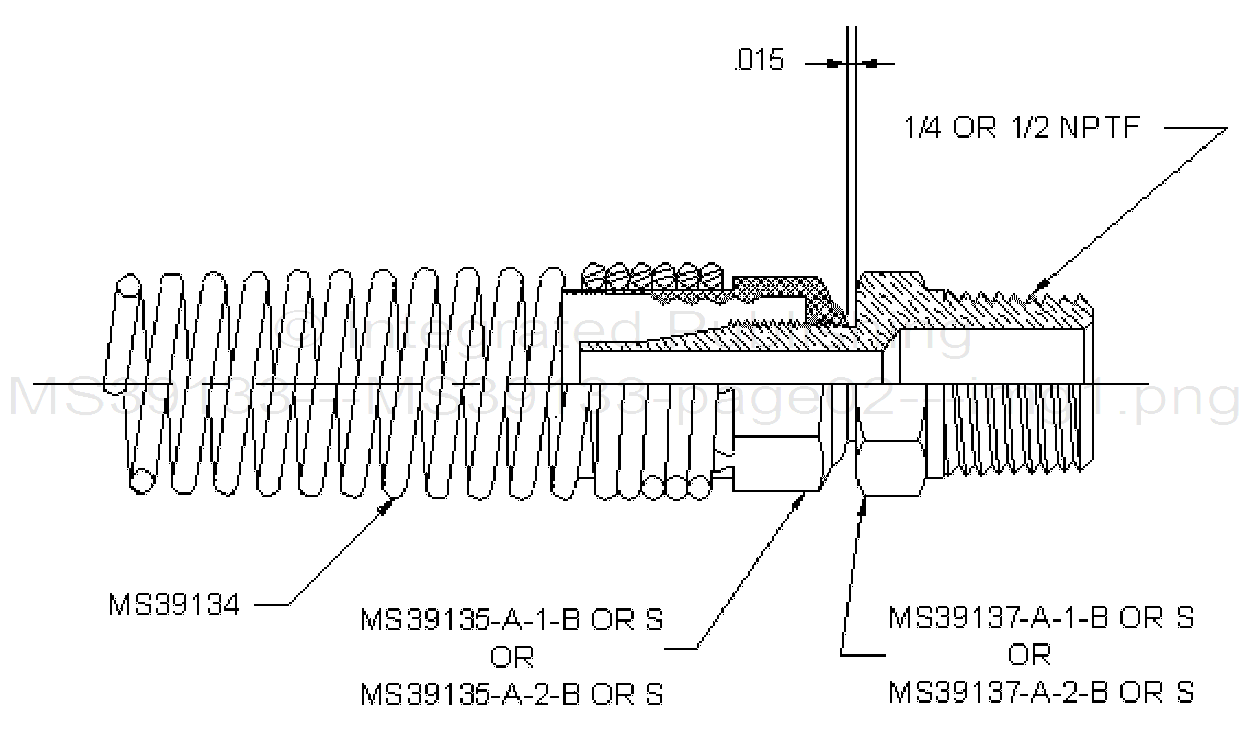

FIGURE 2. Alternate design adapter.
TABLE II. Alternate design adapter dimensions and materials.
MS dash no. |
Pipe end (NPTF Short) |
Material for MS39135-A MS39136-A MS39137-A |
-A-1-B |
1/4 |
Brass |
-A-1-S |
Steel |
|
-A-2-B |
1/2 |
Brass |
-A-2-S |
Steel |
2
