MS33651C
Inch |
mm |
.047 |
1.19 |
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. CRES (Corrosion resistant steel).

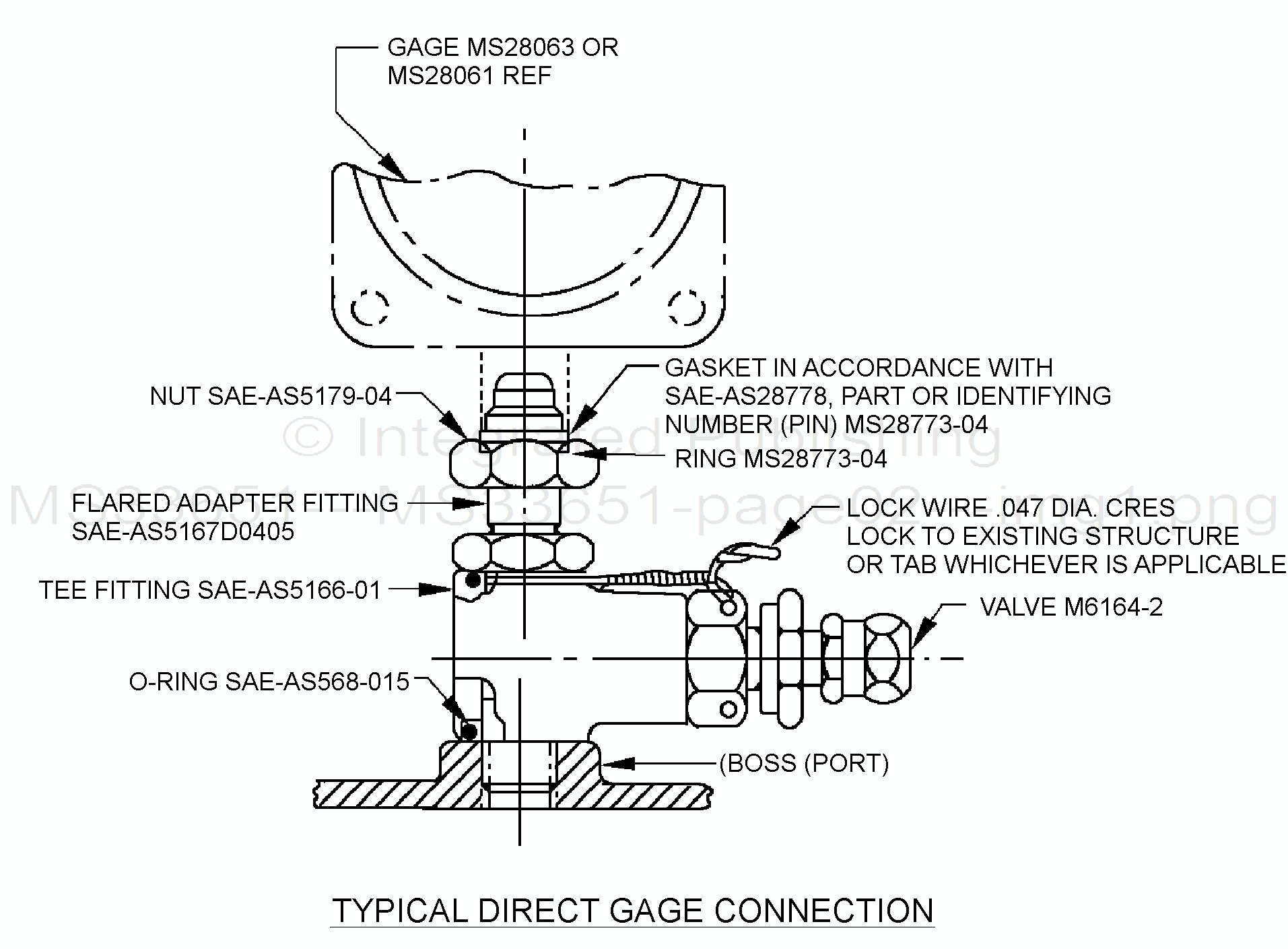

FIGURE 2. Valve M6164-2 installation in boss (typical direct gage connection).
2
