INCH-POUND
MS28760E
24 April 2007 SUPERSEDING MS28760D
6 April 2001
DETAIL SPECIFICATION SHEET
FITTING END, STRAIGHT, ATTACHABLE, HYDRAULIC AND PNEUMATIC, HIGH PRESSURE HOSE 3,000 PSI, FLARED TUBE
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-8789.

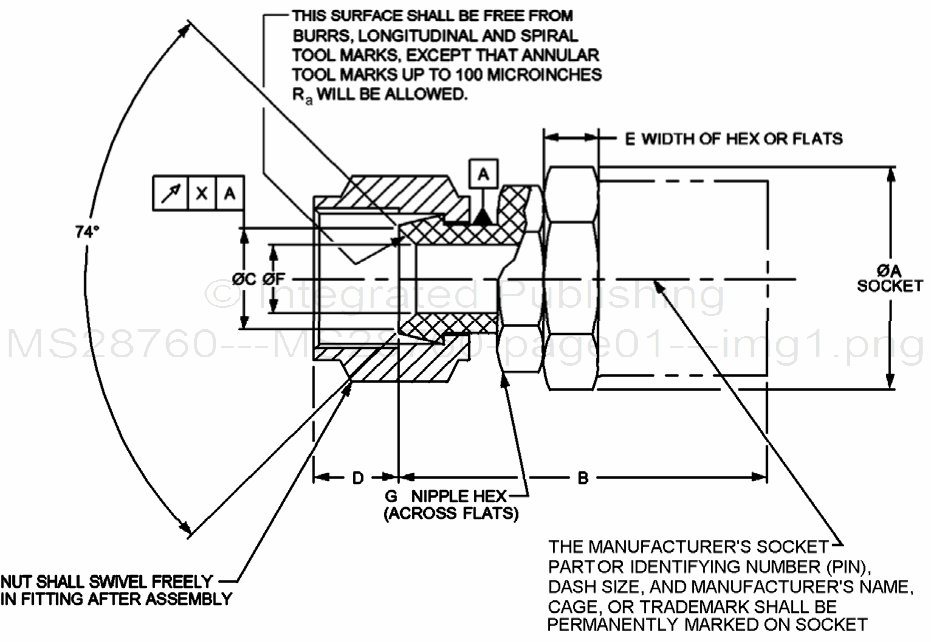

FIGURE 1. Fitting end, straight, flared tube dimensions and configuration.
AMSC N/A FSC 4730
