INCH-POUND MS27639B
22 October 2009
SUPERSEDING MS27639A
29 September 2000
DETAIL SPECIFICATION SHEET DISASSEMBLY TOOL
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-83296.
Inches mm
.02
.12
1.25
2.00
4.00
0.51
3.05
31.75
50.80
101.60

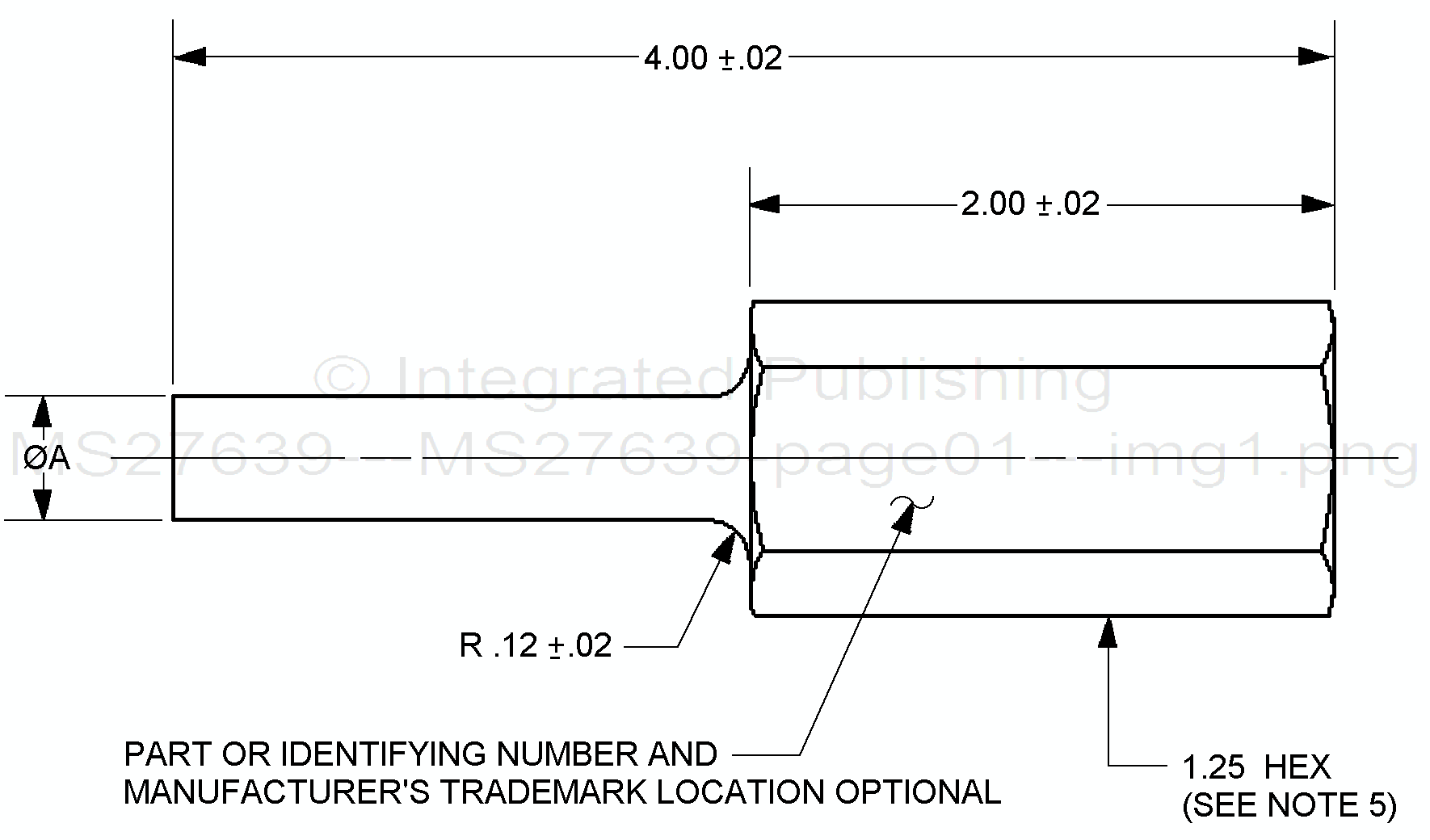

FIGURE 1. Disassembly tool.
AMSC N/A FSC 4730
