MS27626B
Part or Identifying Number (PIN) |
A ±.010 (0.25) inch (mm) |
B ±.005 (0.13) inch (mm) |
C inch (mm) |
D ±.005 (0.13) inch (mm) |
E ±.005 (0.13) inch (mm) |
F ±.005 (0.13) inch (mm) |
G ±.005 (0.13) inch (mm) |
MS27626-4C |
.428 (10.87) |
.929 (23.60) |
.750 (19.05) |
.379 (9.63) |
.110 (2.79) |
.544 (13.82) |
.041 (1.04) |
MS27626-6C |
.545 (13.84) |
.981 (24.92) |
.875 (22.23) |
.361 (9.17) |
.085 (2.16) |
.660 (16.76) |
.043 (1.09) |
MS27626-8C |
.630 (16.00) |
1.137 (28.88) |
1.000 (25.40) |
.400 (10.16) |
.100 (2.54) |
.813 (20.65) |
- |
MS27626-10C |
.735 (18.67) |
1.388 (35.26) |
1.250 (31.75) |
.338 (8.59) |
.100 (2.54) |
.989 (25.12) |
.037 (.94) |

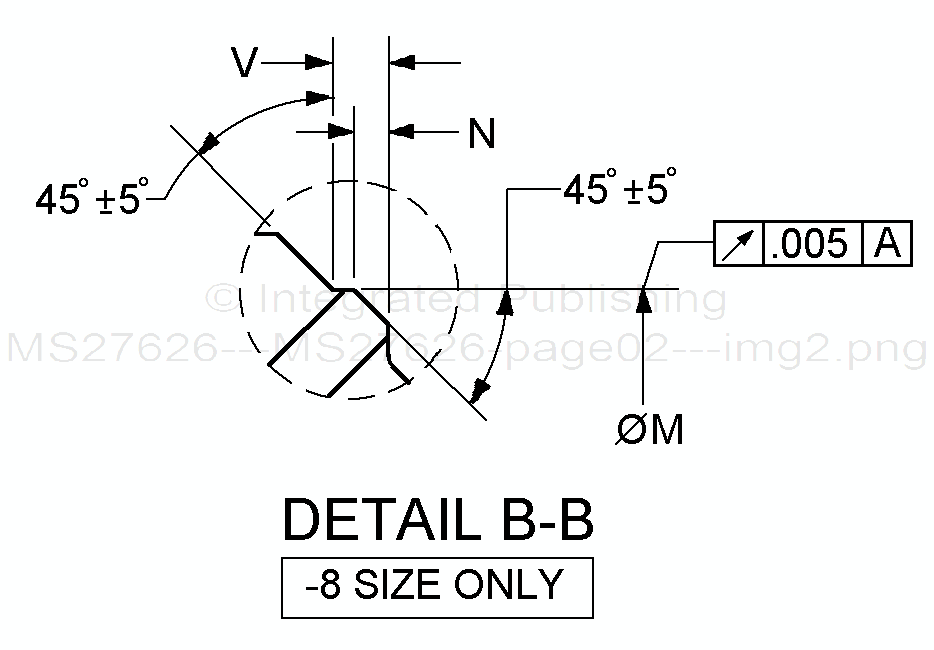

FIGURE 1. Nipple, flared, dimensions and configuration - Continued.
2
