INCH-POUND
MS27625C
14 October 2009 SUPERSEDING MS27625B
14 September 2005
DETAIL SPECIFICATION SHEET WIRE, RETAINER
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-83296.
Part or Identifying Number (PIN) |
A ±.015 (0.38 ) inch (mm) |
B +.000 -.004 (+0.00 -0.10) inch (mm) |
C ±.010 (0.25) inch (mm) |
D inch (mm) |
E +.010 -.000 (+0.25 -.000 mm) |
F inch (mm) |
MS27625-4C |
1.438 (36.53) |
.080 (2.030 |
.020 (0.51) |
.073 (1.85) |
.156 (3.96) |
.030 (0.76) |
MS27625-6C |
1.735 (44.07) |
.095 (2.41) |
.023 (0.58) |
.087 (2.21) |
.186 (4.72) |
.037 (0.94) |
MS27625-8C |
2.203 (55.96) |
.095 (2.41) |
.023 (0.58) |
.087 (2.21) |
.186 (4.72) |
.037 (0.94) |
MS27625-10C |
2.625 (66.68) |
.125 (3.18) |
.031 (0.79) |
.115 (2.92) |
.246 (6.25) |
.050 ±.010 (1.27 ±0.25) |

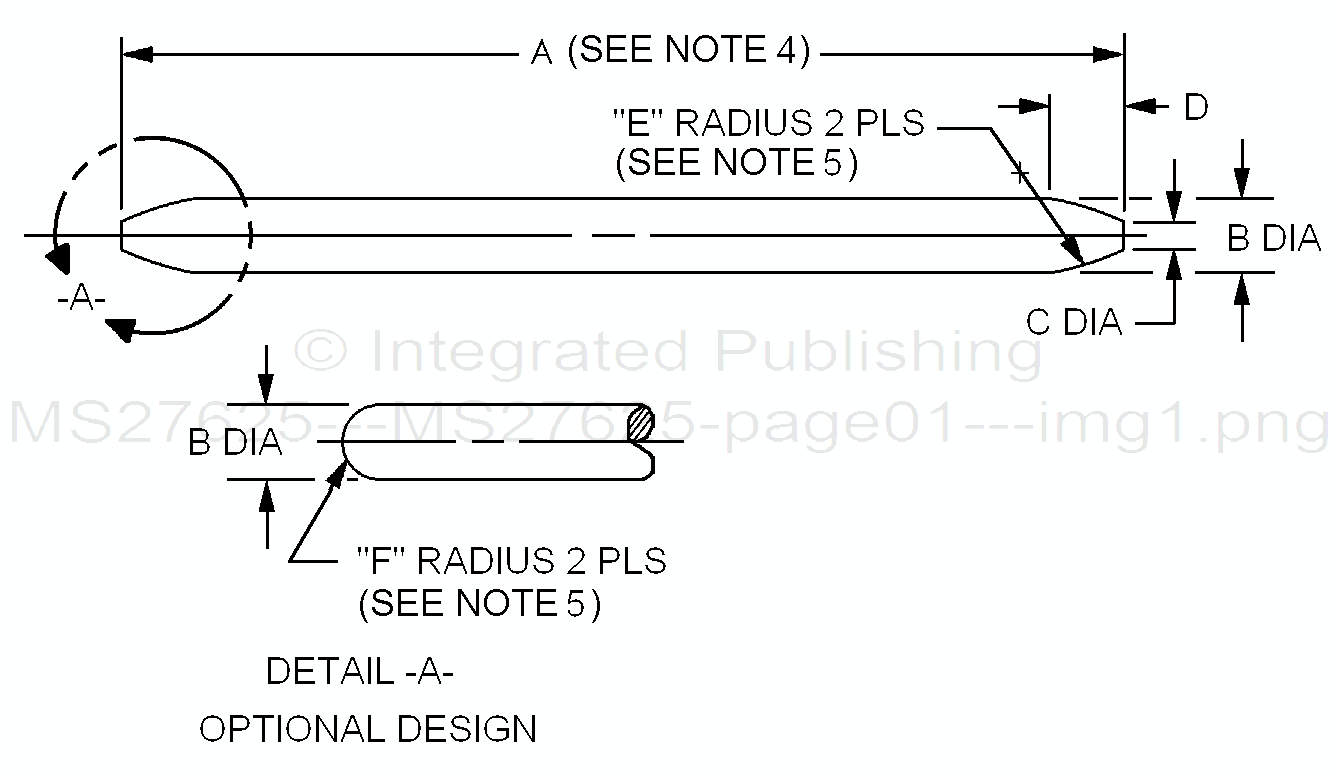

FIGURE 1. Retainer wire dimensions and configuration.
AMSC N/A FSC 4730
