MS27622B
|
PIN |
A ±.010 (0.25) inch (mm) |
B ±.005 (0.13) inch (mm) |
C ±.005 (0.13) inch (mm) |
D ±.005 (0.13) inch (mm) |
E ±.005 (0.13) inch (mm) |
F ±.005 (0.13) inch (mm) |
G ±.005 (0.13) inch (mm) |
MS27622-4C |
1.025 (26.04) |
.485 (12.32) |
.155 (3.94) |
.825 (20.96) |
.750 (19.05) |
.580 (14.73) |
.750 (19.05) |
MS27622-6C |
1.017 (25.83) |
.420 (10.67) |
.140 (3.56) |
.962 (24.43) |
.870 (22.10) |
.690 (17.53) |
.870 (22.10) |
MS27622-8C |
1.230 (31.24) |
.565 (14.35) |
.265 (6.73) |
1.100 (27.94) |
.995 (25.27) |
.870 (22.10) |
.995 (25.27) |
MS27622-10C |
1.271 (32.28) |
.530 (13.46) |
.155 (3.94) |
1.375 (34.93) |
1.243 (31.57) |
1.032 (26.21) |
1.243 (31.57) |
|
PIN |
H ±.005 (0.13) inch (mm) |
J inch (mm) |
K ±.005 (0.13) inch (mm) |
L ±.005 (0.13) inch (mm) |
M ±.005 (0.13) inch (mm) |
N ±.005 (0.13) inch (mm) |
P max inch (mm) |
MS27622-4C |
.750 (19.05) |
.750 (19.05) |
.386 (9.80) |
.030 (0.76) |
- |
- |
.395 (10.03) |
MS27622-6C |
.870 (22.10) |
.875 (22.23) |
.402 (10.21) |
- |
.635 (16.13) |
||
MS27622-8C |
.995 (25.27) |
1.000 (25.40) |
.436 (11.07) |
.050 (1.27) |
.436 (11.07) |
- |
.400 (10.16) |
MS27622-10C |
1.243 (31.57) |
1.250 (31.75) |
.446 (11.33) |
- |
- |

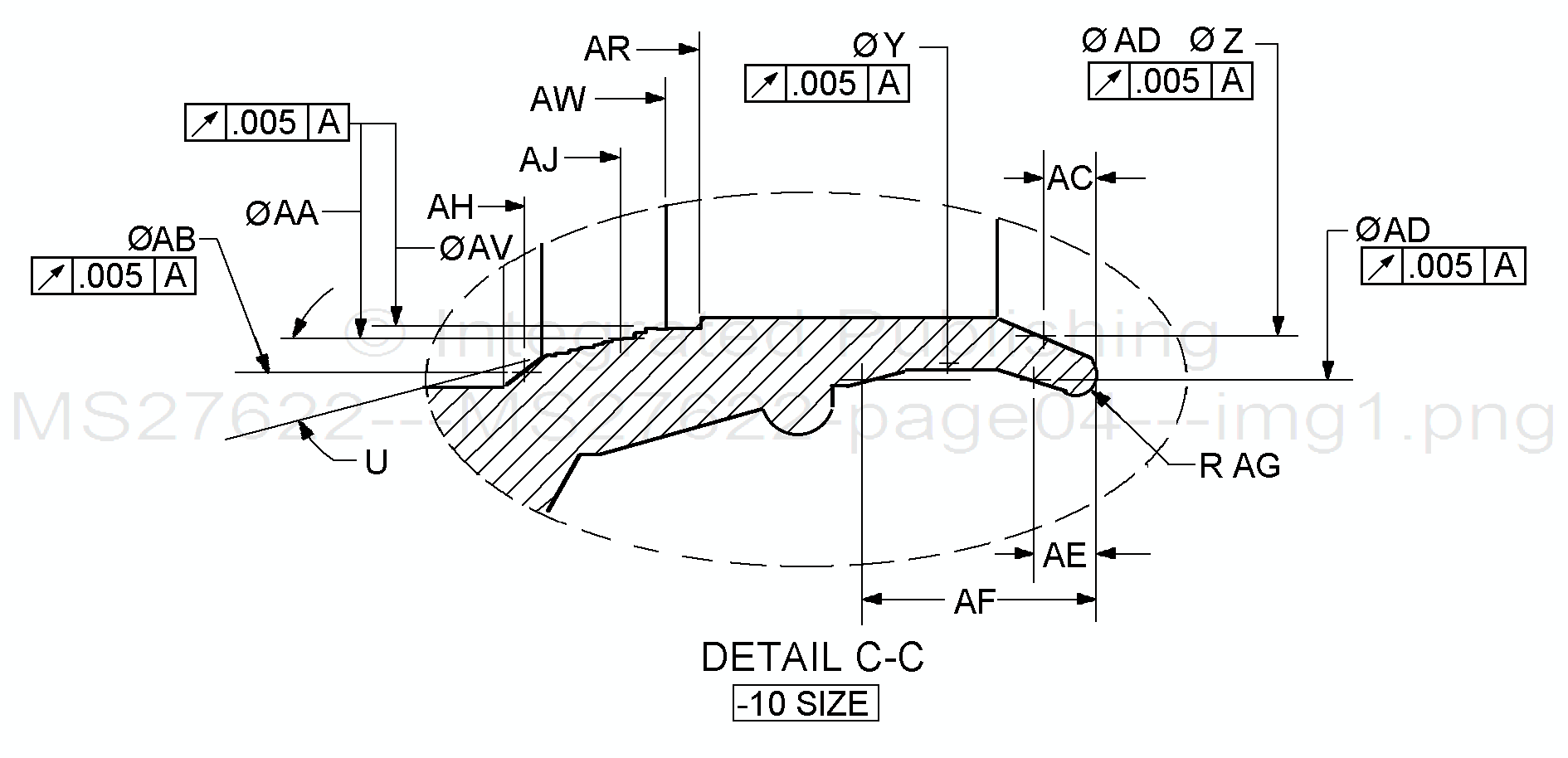

FIGURE 1. Socket dimensions and configuration - Continued.
