MS27391F
Size and material code |
u inches (mm) |
|
CRES |
||
-3/-4C |
.25 (6.35) |
±.05 (1.3) |
-4C |
||
-5C |
||
-6C |
||
-8C |
.32 (8.13) |
±.12 (3.0) |
-10C |
.35 (8.89) |
±.15 (3.8) |
-12C |
||
-16C |
.39 (9.91) |
±.19 (4.8) |
-20C |
.48 (12.19) |
±.28 (7.1) |
-24C |
.50 (12.70) |
±.30 (7.6) |

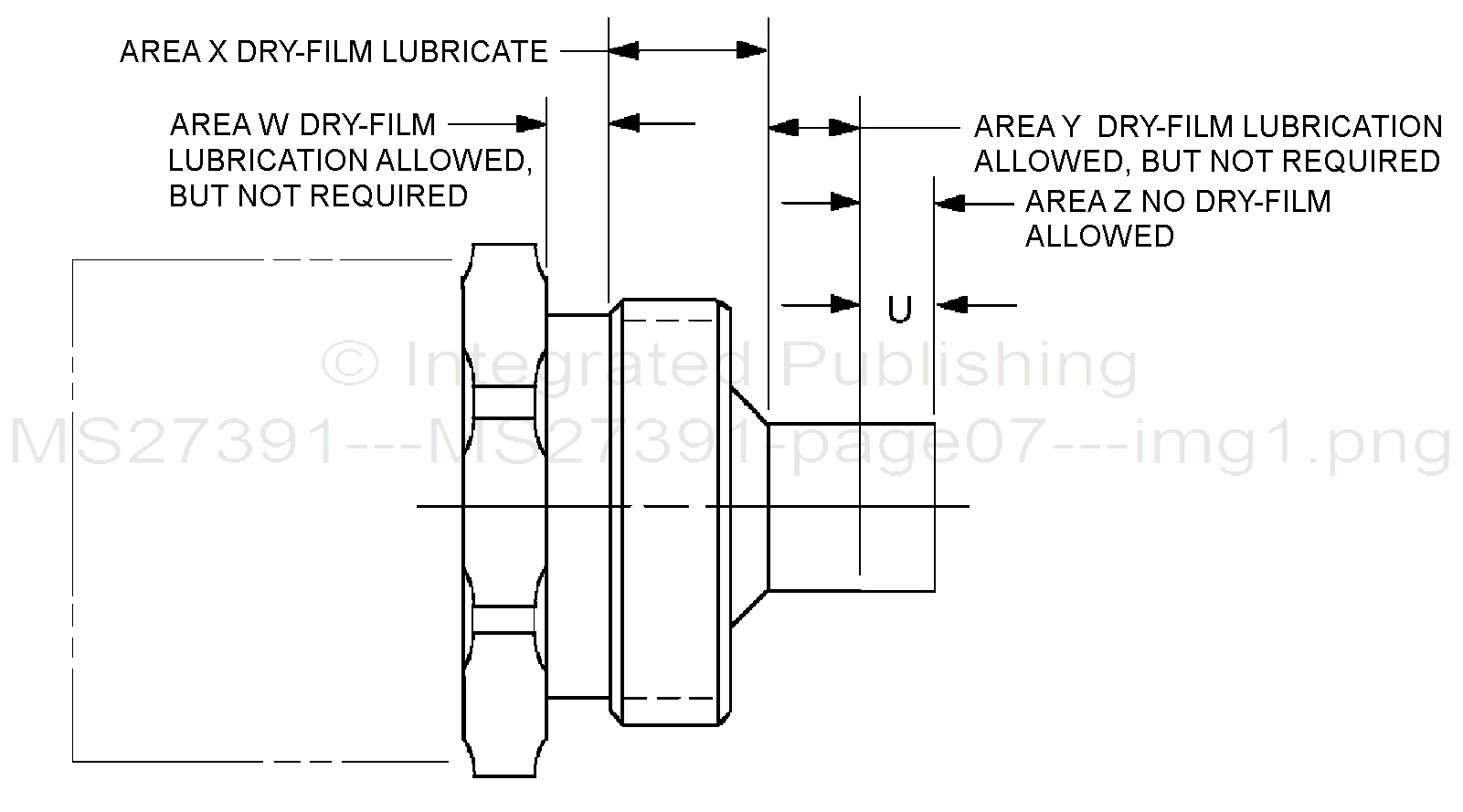

FIGuRE 2. Dry-film lubrication area.
7
