INCH-POUND
MS27389D
14 January 2014 SUPERSEDING MS27389C
12 December 2011
DETAIL SPECIFICATION SHEET
ELBOW SUBASSEMBLY, FLARELESS, 45° FORGED, SWIVEL NUT This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-27272.
NOTES:
1. Dimension A is measured between the hose end of the threaded section of union and the free end of the insert at its centerline.
2. Dimension B is measured between the centerline of the elbow and the free end of the insert at its centerline.
3. If required, lockwire holes to be drilled in accordance with SAE-AS1043.
4. Any forged design of adapter components to the left of plane A-A is acceptable provided the dimensions of A and B and the requirements of this specification sheet and the procurement specification are met.

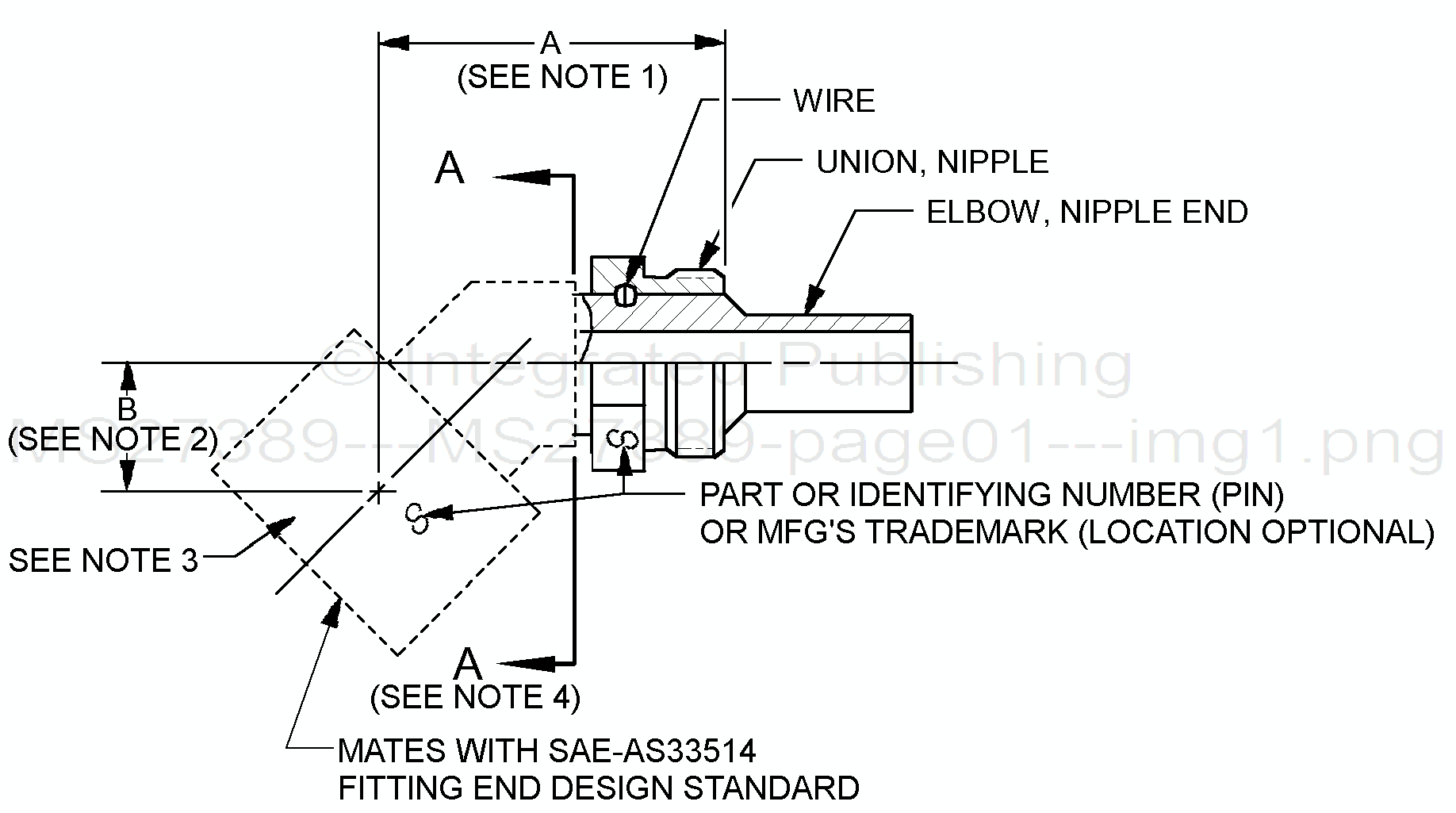

FIGURE 1. Elbow subassembly illustration.
.
AMSC N/A FSC 4730
