INCH-POUND
MS27239E
14 May 2007 SUPERSEDING MS27239D
22 September 2000
DETAIL SPECIFICATION SHEET
NIPPLE, STRAIGHT, ADAPTER, HOSE TO TUBE, REUSABLE, HYDRAULIC, FUEL AND OIL LINES,
1/4 THROUGH 4 INCH TUBE SIZES
This specification is approved for use by all Departments and Agencies of the Department of
Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-5070.
Inch |
mm |
.010 .020 .030 |
0.25 0.51 0.76 |

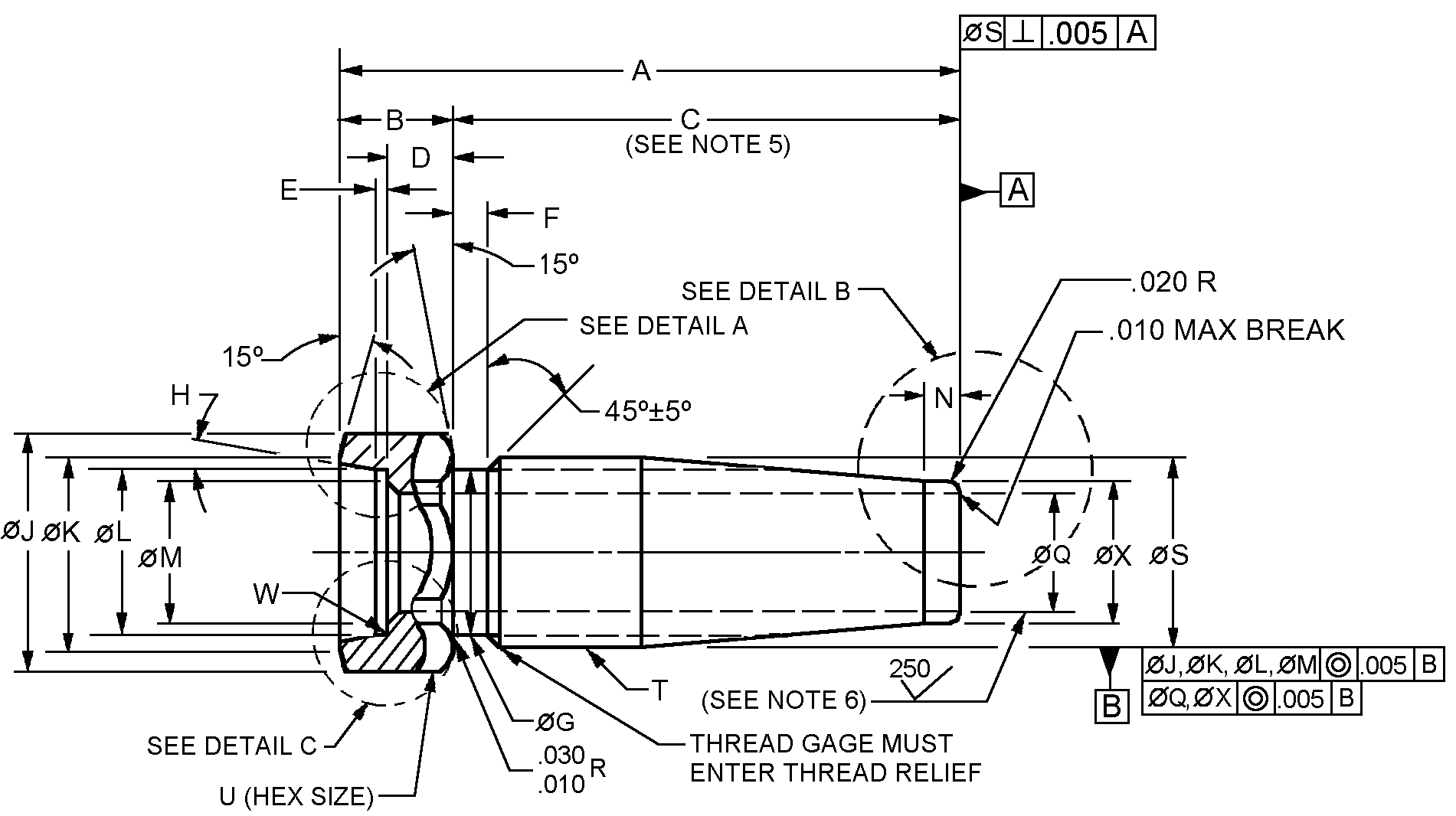

FIGURE 1. Nipple dimensions and configuration.
AMSC N/A FSC 4730
