INCH-POUND
MS27237F
14 May 2007 SUPERSEDING MS27237E
6 April 2001
DETAIL SPECIFICATION SHEET
SHOULDER, SWIVEL FLANGE, ADAPTER, HOSE TO TUBE, HYDRAULIC FUEL AND OIL LINES,
1/2 THROUGH 3 IN. TUBING SIZES
This specification is approved for use by all Departments and Agencies of the Department of
Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-5070.
Inches |
mm |
.010 .015 .030 .031 .046 |
0.25 0.38 0.76 0.79 1.02 |

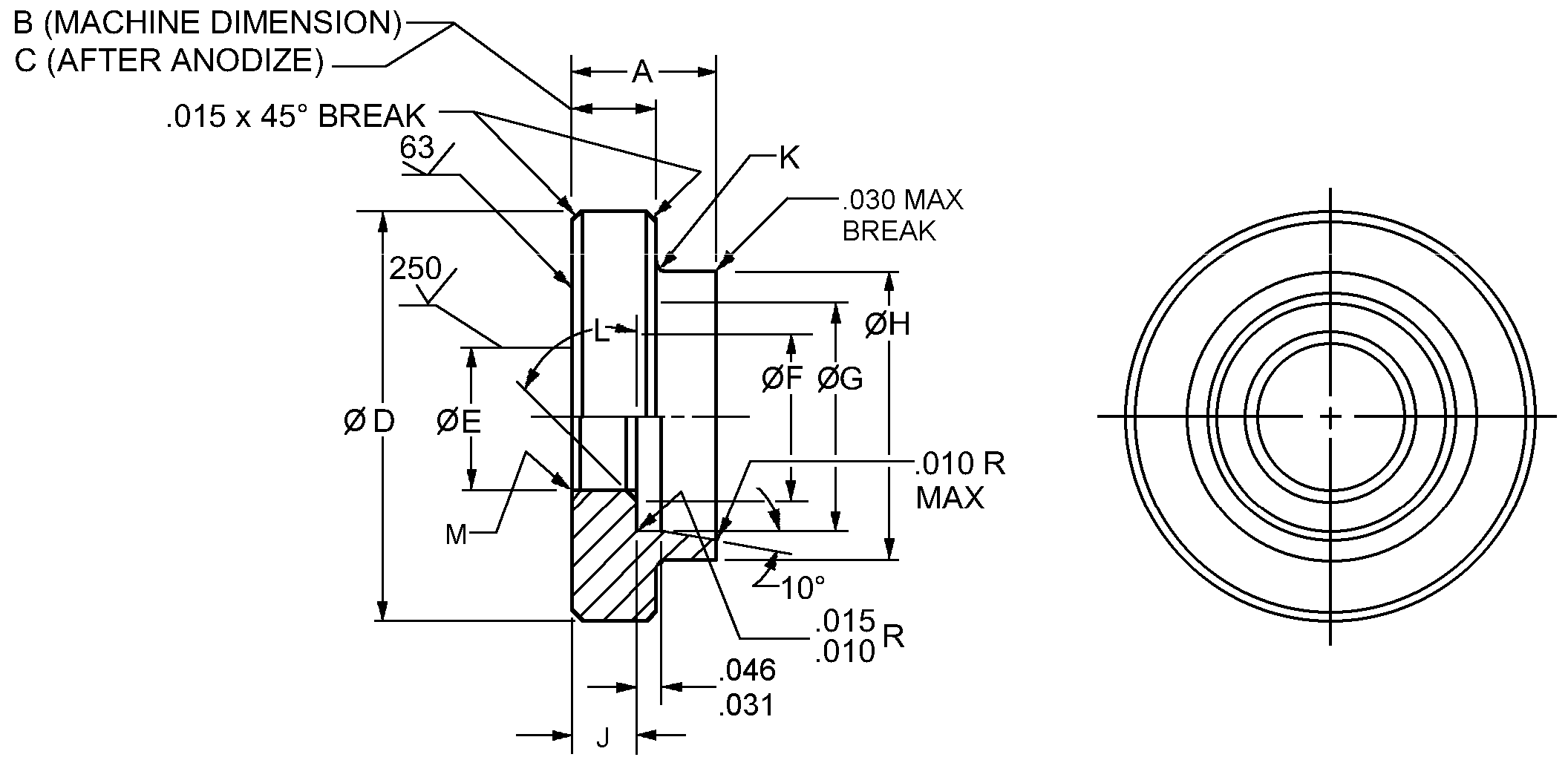

FIGURE 1. Shoulder dimensions and configuration.
AMSC N/A FSC 4730
