INCH-POUND MS27066F
7 October 2013
SUPERSEDING MS27066E
24 September 2003
DETAIL SPECIFICATION SHEET
ELBOW SUBASSEMBLY, SWIVEL FLANGE, 90°
This specification sheet is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-27272.

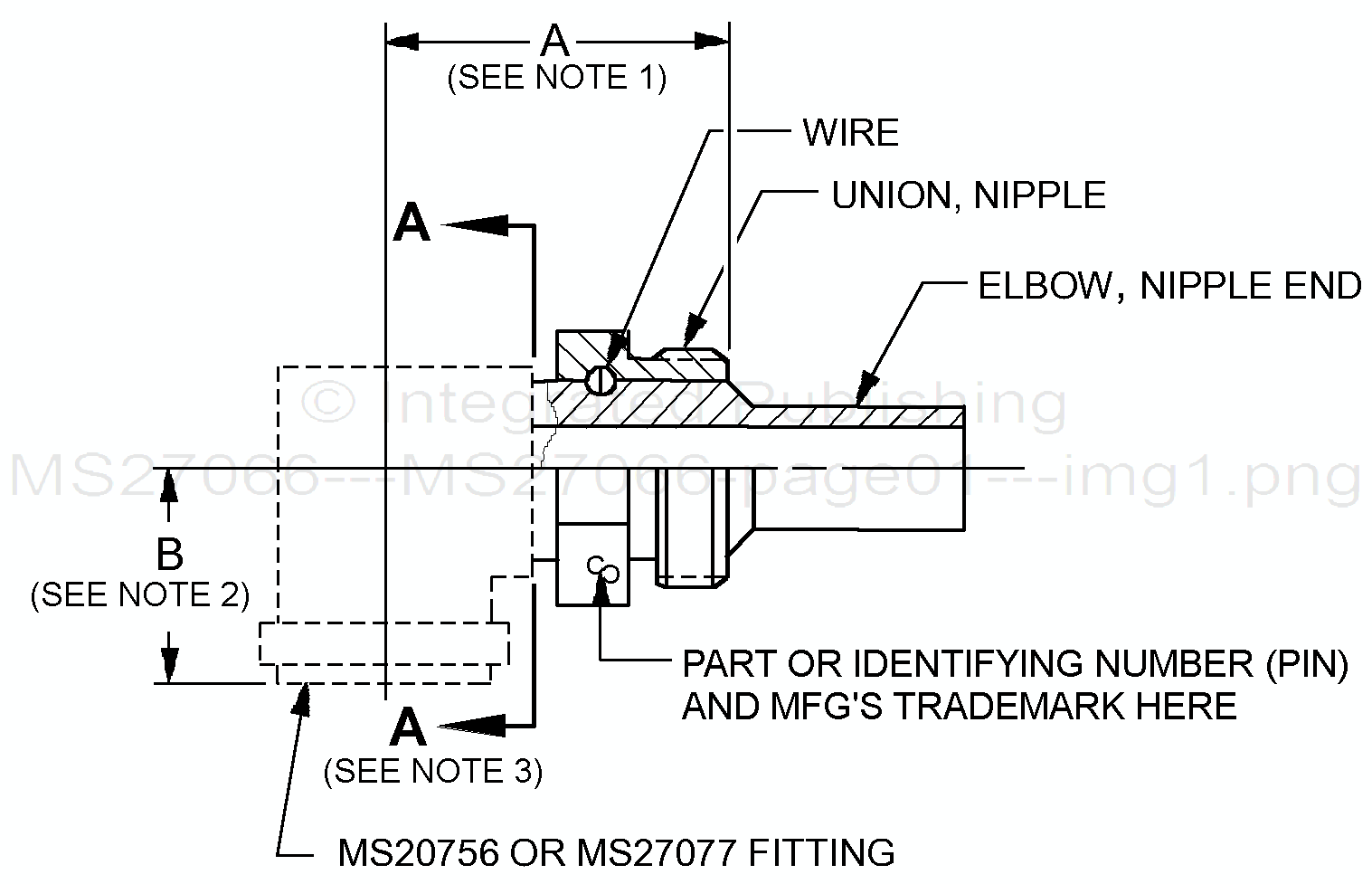

NOTES:
1. Dimension A, see table II, is measured between the hose end of the threaded section of the union and the centerline of the insert.
2. Dimension B, see table II, is measured between the centerline of the nipple and the free end of the insert.
3. Any bent tube design of elbow subassembly components to the left of plane A-A is
acceptable provided that the requirements of this specification sheet and the procurement specification are met.
FIGURE 1. Elbow subassembly illustration.
AMSC N/A FSC 4730
