INCH-POUND
MS27063F
7 October 2013 SUPERSEDING MS27063E
24 September 2003
DETAIL SPECIFICATION SHEET
ELBOW SUBASSEMBLY, FLARED, 45°, SWIVEL NUT This specification sheet is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-27272.
NOTES:
1. Dimension A, see table II, is measured between the hose end of the threaded section of the union and the free end of the insert at its centerline.
2. Dimension B, see table II, is measured between the centerline of the elbow and the free end of the insert at its centerline.
3. If required, lockwire holes to be drilled in accordance with SAE-AS1043.
4. Any bent tube design of subassembly components to the left of plane A-A is acceptable provided that the requirements of this specification sheet and the procurement specification are met.

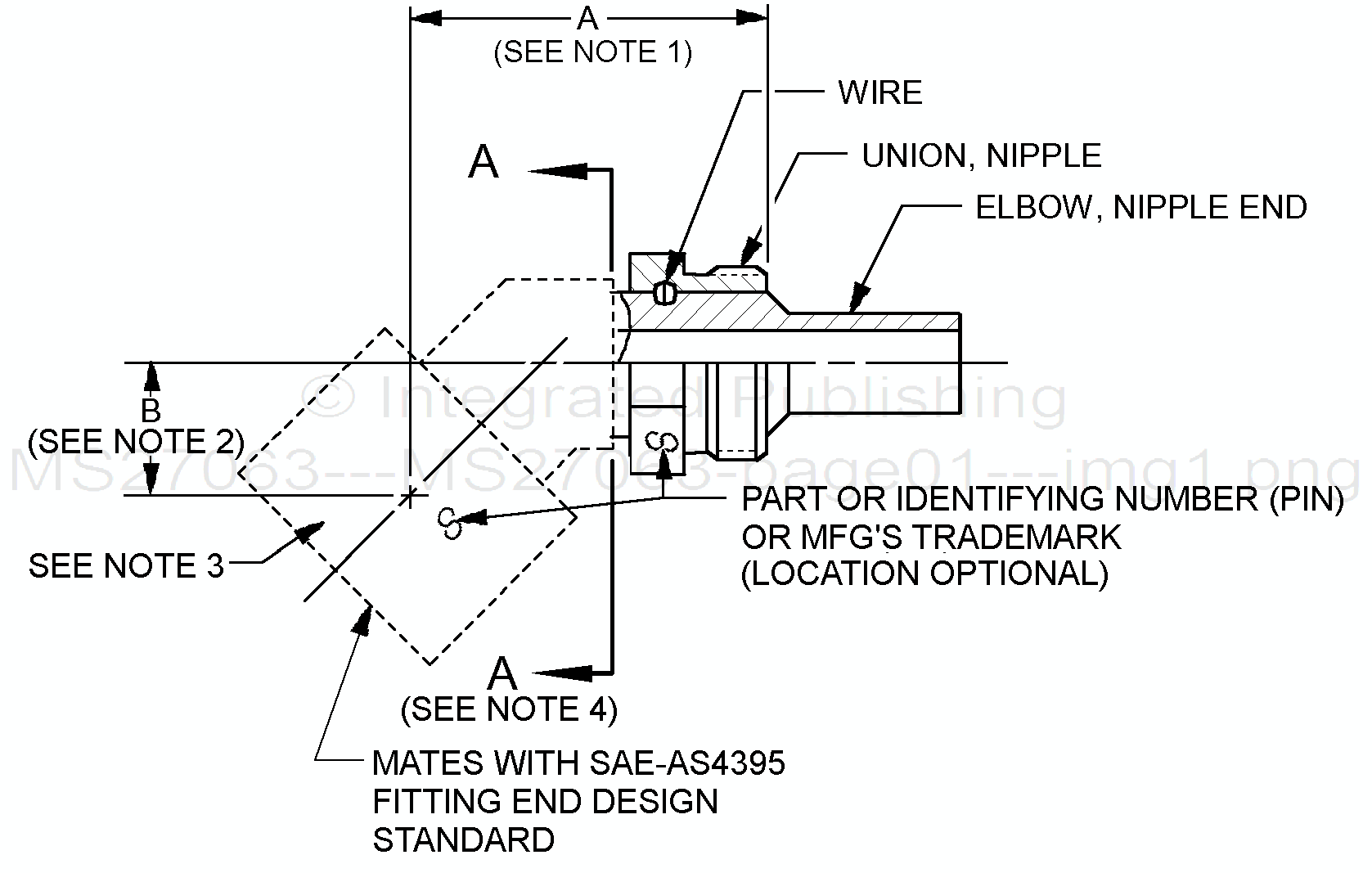

FIGURE 1. Elbow subassembly illustration.
