DETAIL SPECIFICATION SHEET
NIPPLE SUBASSEMBLY, STRAIGHT, SWIVEL FLANGE This specification sheet is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-27272.
INCH-POUND
MS27062D
7 October 2013 SUPERSEDING MS27062C
24 September 2003
NOTES:
1. Dimension A, see table II, is measured between the hose end of the threaded section of the union and the free end of the insert.
2. Any design of subassembly components to the left of plane A-A is acceptable provided that the nipple is a one-piece design, and the requirements of this specification sheet and the procurement specification are met.

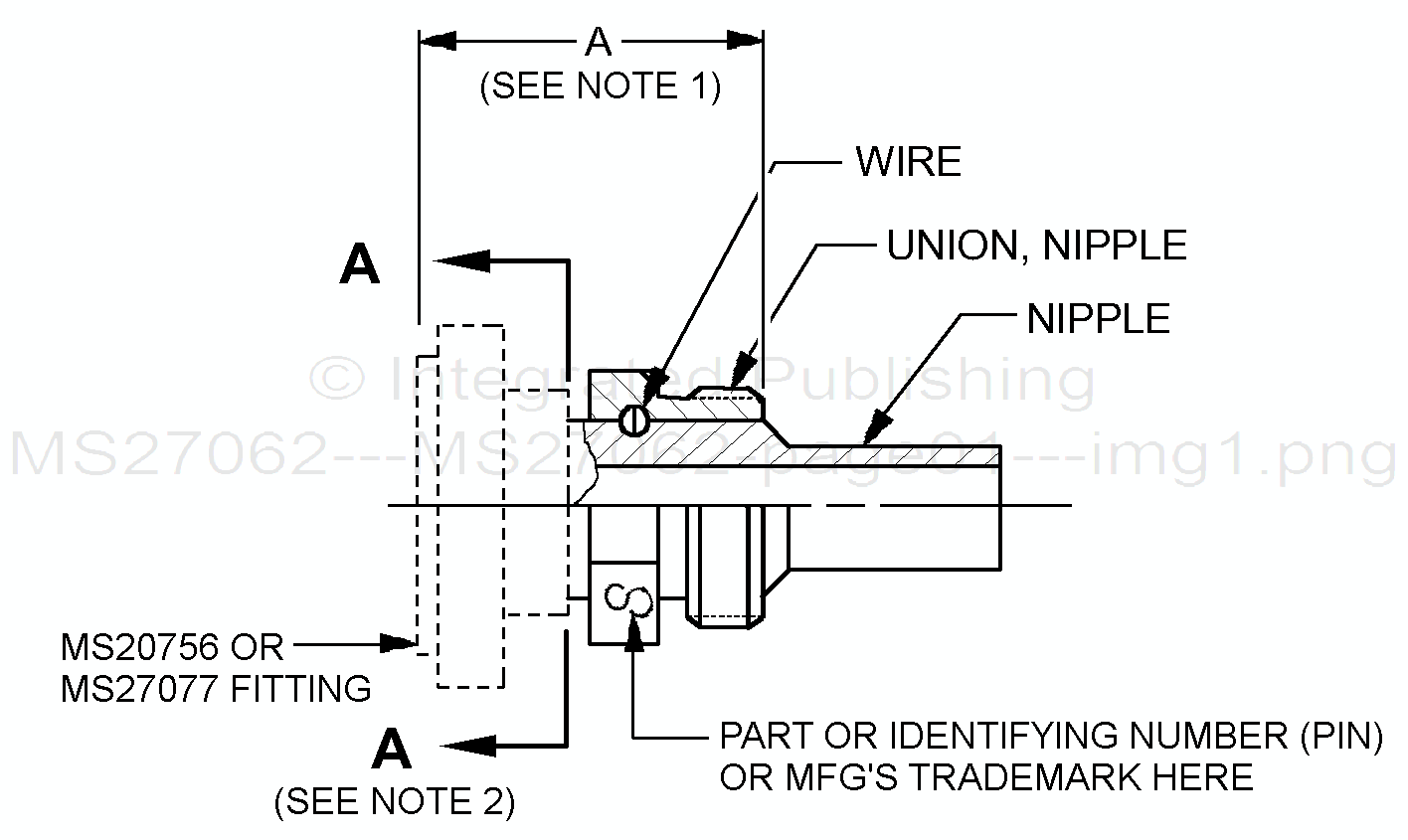

FIGURE 1. Nipple subassembly illustration.
AMSC N/A FSC 4730
