INCH-POUND
MS27055E
7 October 2013 SUPERSEDING MS27055D
25 September 2003
DETAIL SPECIFICATION SHEET
ADAPTER ASSEMBLY, FLARED, 45° ELBOW, TUBE TO HOSE - WITH SWIVEL NUT
This specification sheet is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-27272.
NOTES:
1. Dimension A, see table II, is measured between the hose end of the socket and the free end of the insert at its centerline when the socket is assembled on the elbow subassembly.
2. Lockwire holes if required in accordance with SAE-AS1043.
3. Socket may be hex or 2-flat sides.

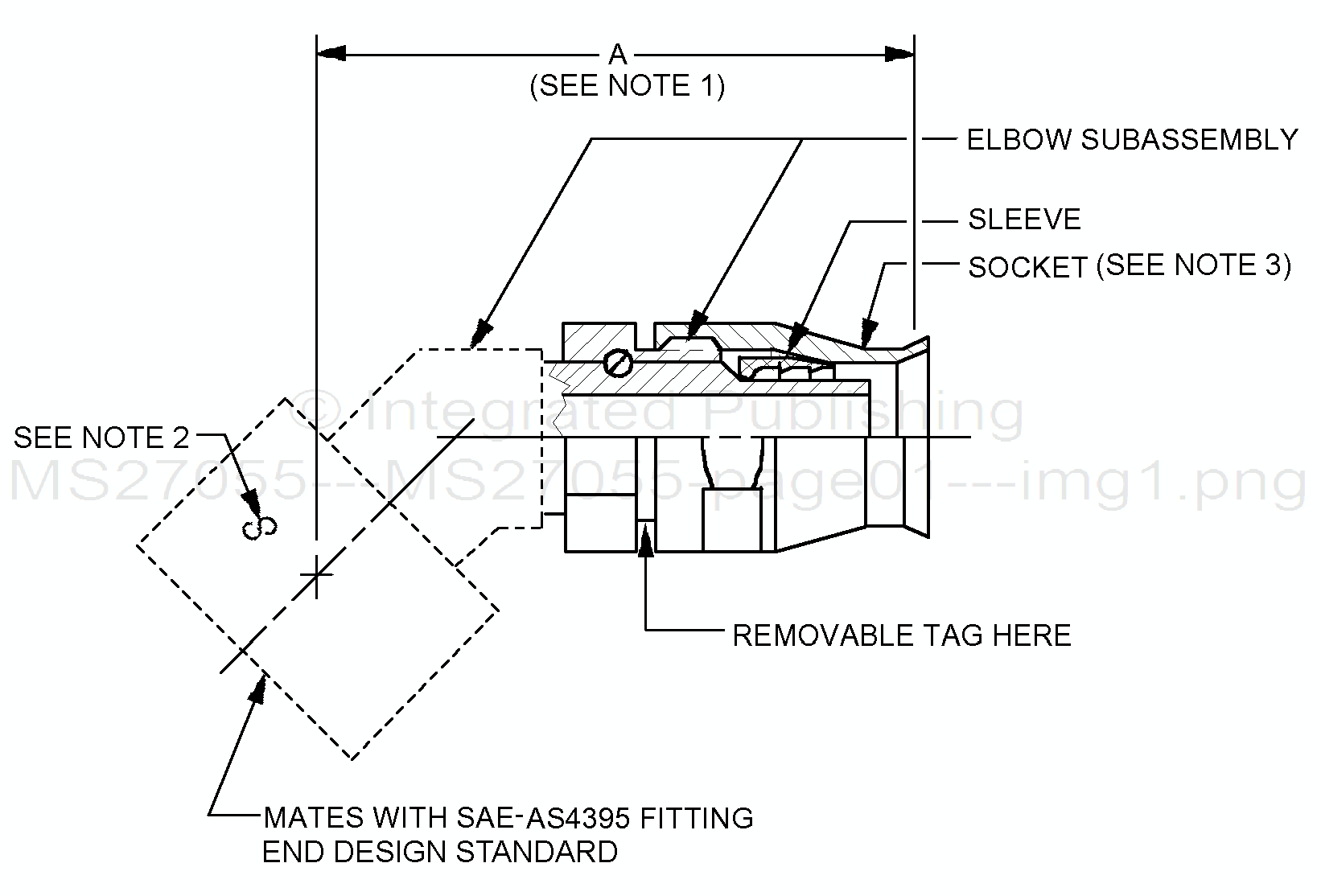

FIGURE 1. Adapter assembly illustration.
.
AMSC N/A FSC 4730
