INCH-POUND
MS27054E
7 October 2013 SUPERSEDING MS27054D
25 September 2003
DETAIL SPECIFICATION SHEET
ADAPTER ASSEMBLY, STRAIGHT, SWIVEL FLANGE TO HOSE This specification sheet is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-27272.
NOTES:
1. Dimension A, see table II, is the dimension between the hose end of the socket and the free end of the insert when the socket is assembled on the nipple subassembly.
2. Socket may be hex or 2-flat-sides.

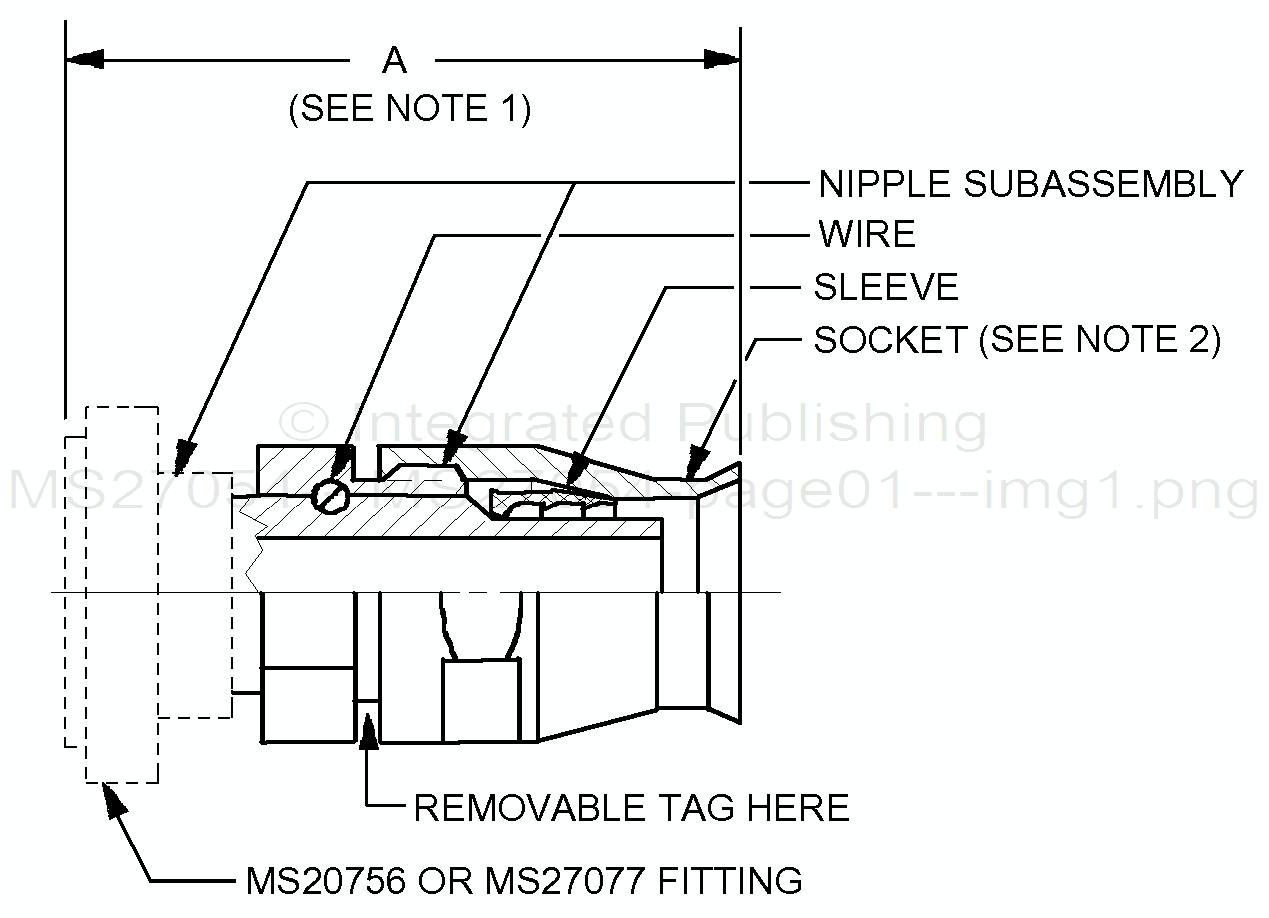

FIGURE 1. Adapter assembly illustration.
AMSC N/A FSC 4730
