MS21955 Body, Cluster Fitting, Two-Way 180 Deg., Flare

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7

MS21955C

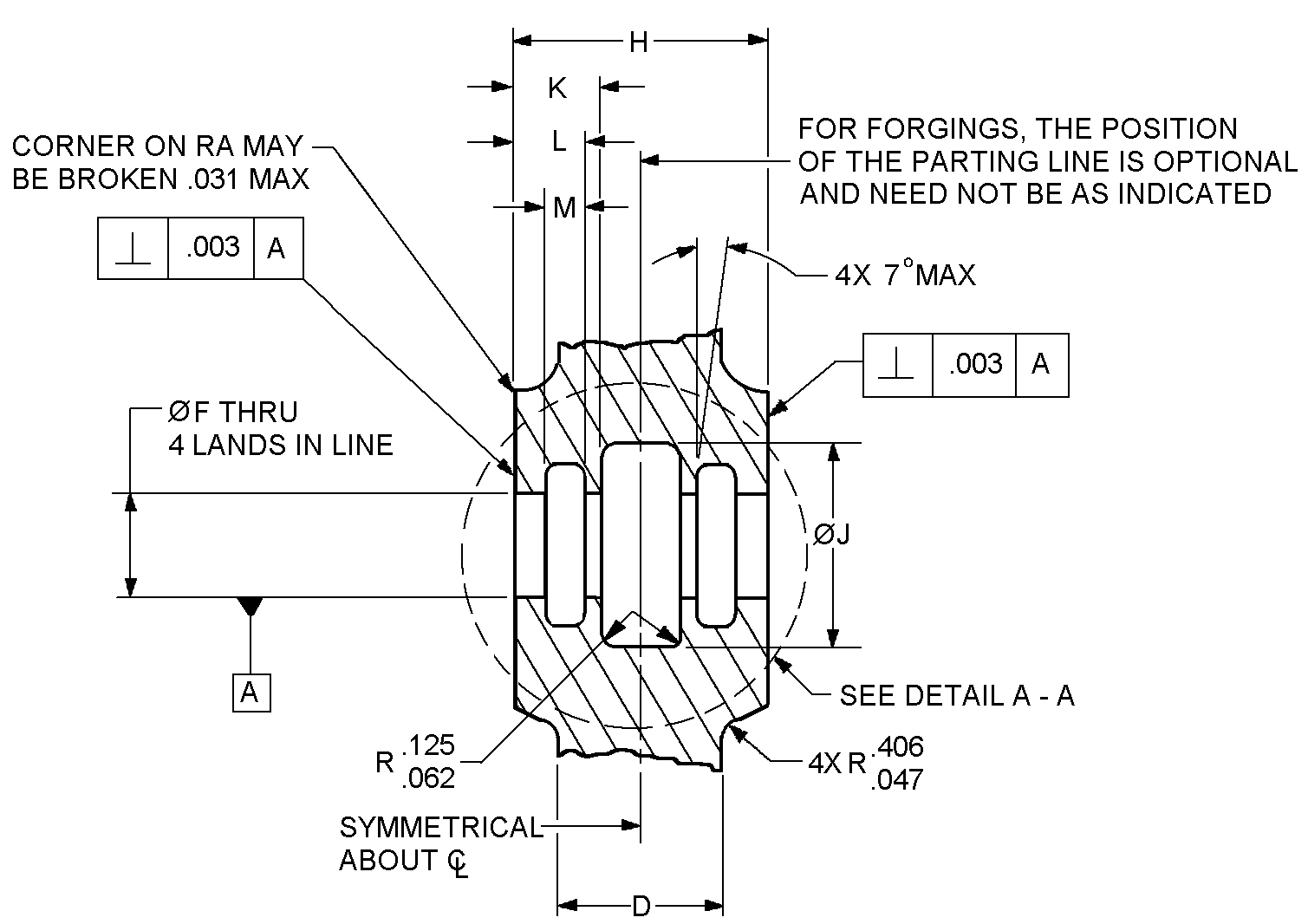

SECTION A - A

Inches    mm

.003

.031

.047

.062

.125

.406

0.08

0.79

1.19

1.57

3.18

10.31

FIGURE 2.  Cluster fitting body contour and mounting end - Continued.
