MS20760D
40 and 48 size codes (see note 7)
Inches |
mm |
.005 .015 .125 |
0.13 0.38 3.18 |
Size code number |
Tubing OD |
Thread T (ref) |
A dia. ±.003 (0.08) inch (mm) |
B dia. inch (mm) |
8 |
.500 (12.70) |
.7500-16UNJF-3A |
.391 (9.93) |
.660 (16.76) |
10 |
.625 (15.88) |
.8750-14UNJF-3A |
.484 (12.29) |
.773 (19.63) |
12 |
.750 (19.05) |
1.0625-12UNJ-3A |
.600 (15.24) |
.891 (22.63) |
12 -16 |
||||
16 |
1.000 (2.54) |
1.3125-12UNJ-3A |
.844 (21.44) |
1.156 (29.36) |
20 |
1.250 (13.75) |
1.6250-12UNJ-3A |
1.078 (27.38) |
1.438 (36.53) |
20-24 |
||||
24 |
1.500 (38.10) |
1.8750-12UNJ-3A |
1.312 (33.32) |
1.688 (42.88) |
32 |
2.000 (50.80) |
2.500-12UNJ-3A |
1.781 (45.24) |
2.250 (57.15) |
40 |
2.500 (63.50) |
3.000-12UNJ-3A |
2.281 (57.94) |
2.812 (71.42) |
48 |
3.000 (76.20) |
3.5000-12UNJ-3A |
2.781 (70.64) |
3.344 (84.94) |

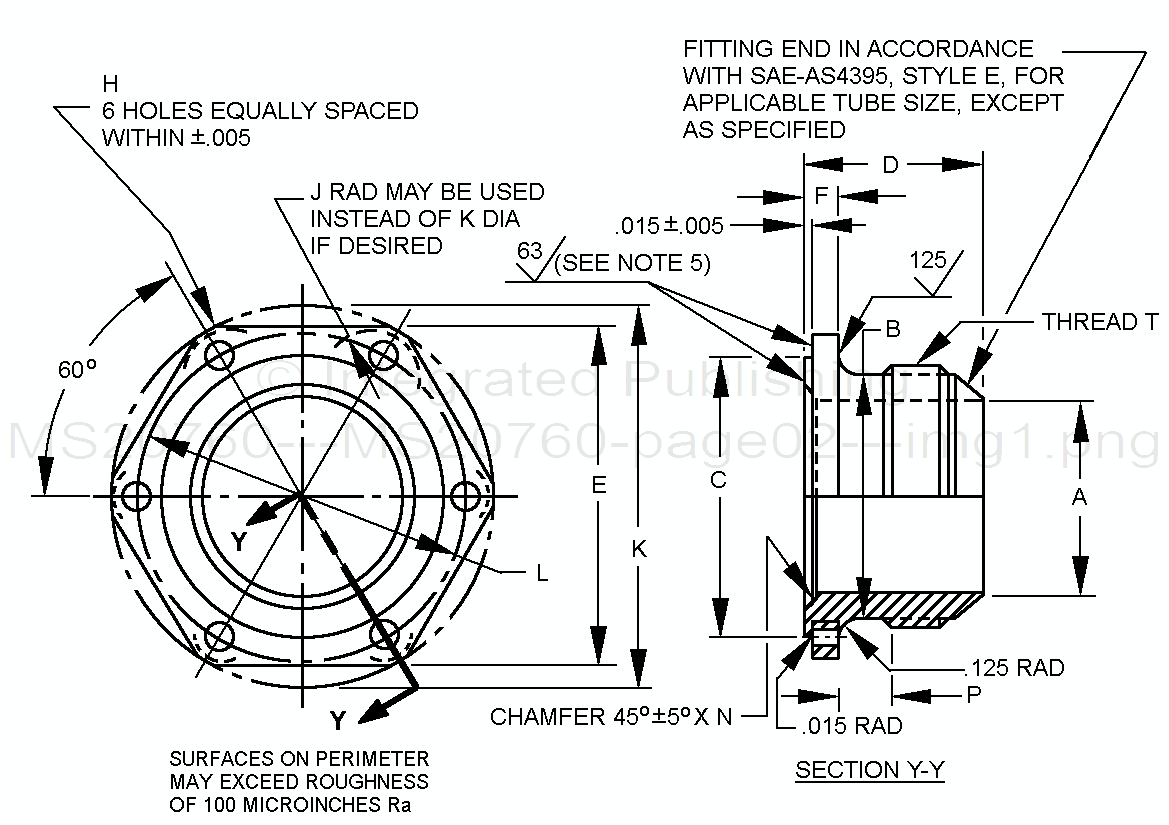

FIGURE 1. Adapter straight flange to tube dimensions and configurations - Continued.
