MS20757C
40 and 48 size codes
Inches |
mm |
.005 .010 .015 .030 .125 1.625 |
0.13 0.25 0.38 0.76 3.18 41.28 |
Size code number |
Hose ID inch (mm) |
A Dia. ±.003 (0.08) inch (mm) |
B Dia. +.000 -.015 (0.38) |
C Dia. ±.010 (0.25) |
D inch (mm) |
8 |
.500 (12.70) |
--- |
--- |
.875 (22.23) |
--- |
10 |
.625 (15.88) |
--- |
--- |
1.000 (25.40) |
--- |
12 |
.750 (19.05) |
.609 (15.47) |
.891 (22.63) |
1.250 (31.75) |
2.000 (50.80) |
12-16 |
1.500 (38.10) |
||||
16 |
1.000 (25.40) |
.844 (21.44) |
1.156 (29.36) |
||
20 |
1.250 (31.75) |
1.078 (27.38) |
1.438 (36.53) |
1.844 (46.84) |
2.062 (52.37) |
20-24 |
2.125 (53.98) |
2.125 (53.98) |
|||
24 |
1.500 (38.10) |
1.312 (33.32) |
1.688 (42.88) |
||
32 |
2.000 (50.80) |
1.781 (45.24) |
2.250 (57.15) |
2.750 (69.85) |
2.188 (55.58) |
40 |
2.500 (63.50) |
2.281 (57.94) |
2.812 (71.42) |
3.281 (83.34) |
|
48 |
3.000 (76.20) |
2.781 (70.64) |
3.344 (84.94) |
3.781 (96.04) |

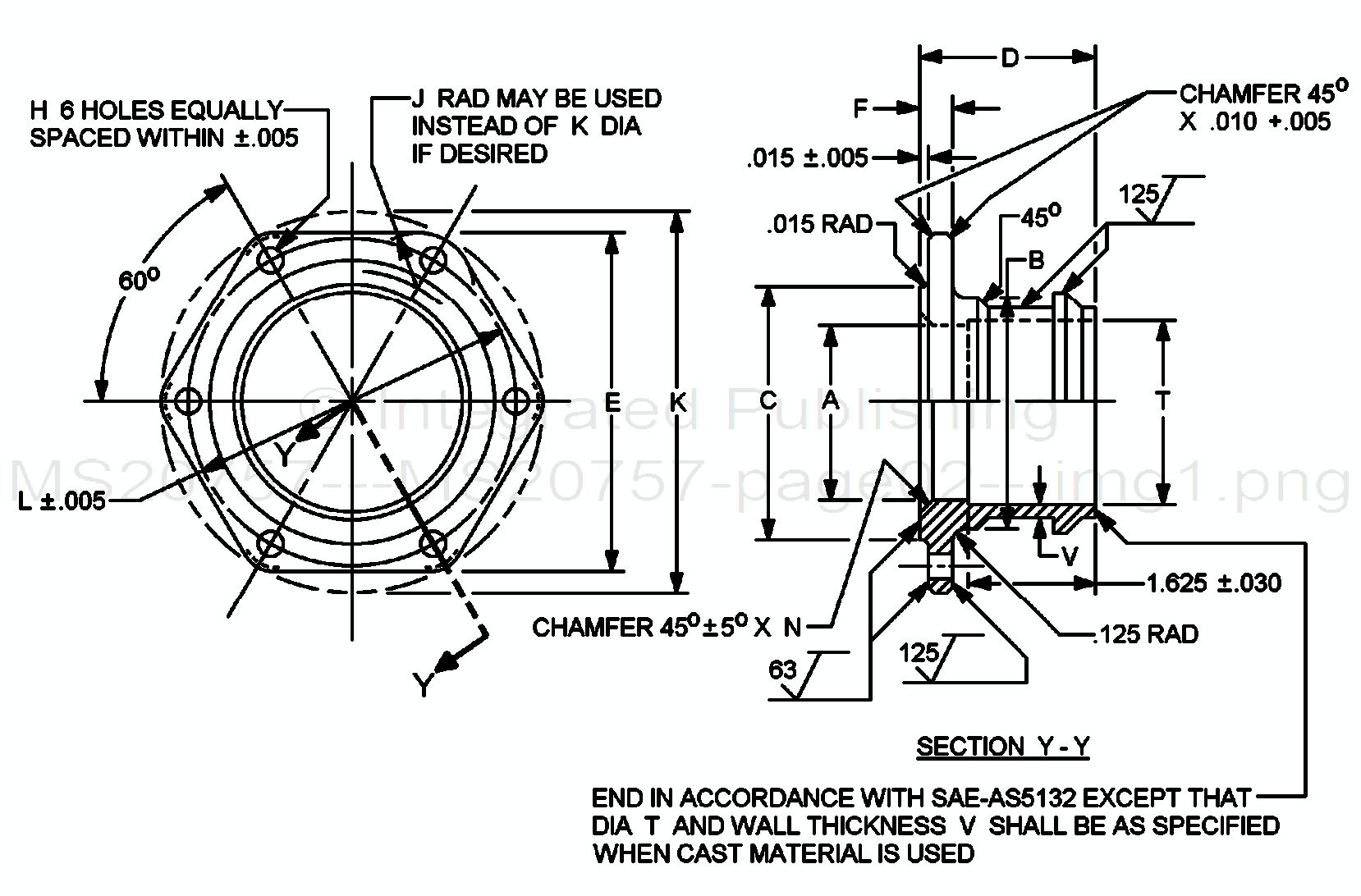

FIGURE 1. Connector fixed flange dimensions and configurations - Continued.
