INCH-POUND
MIL-DTL-52525/9C
12 November 2008
SUPERSEDING
MIL-DTL-52525/9B
30 June 1998
DETAIL SPECIFICATION SHEET
FITTINGS, HOSE, SCREW-ON TO 37° FLARE FEMALE SWIVEL, STRAIGHT
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet
and MIL-DTL-52525.
Hose
Tube
Thread
C max
Part or Identifying
ID ref
OD
size
Inches (cm)
Number (PIN)
Inches (mm)
Inches (mm)
(see note 3)
M52525/9-12-12
.750 (9.53)
.750 (19.05)
1-1/16-12-UNC
5.82 (14.8)
M52525/9-16-16
1.000 (25.40)
1.000 (25.40)
1-5/16-12-UNC
4.79 (12.167)
M52525/9-20-20
1.250 (31.75)
1.250 (31.75)
1-5/8-12-UNC
6.75 (17.15)
M52525/9-24-24
1.500 (38.10)
1.500 (38.10)
1-7/8-12-UNC
7.21 (18.31)

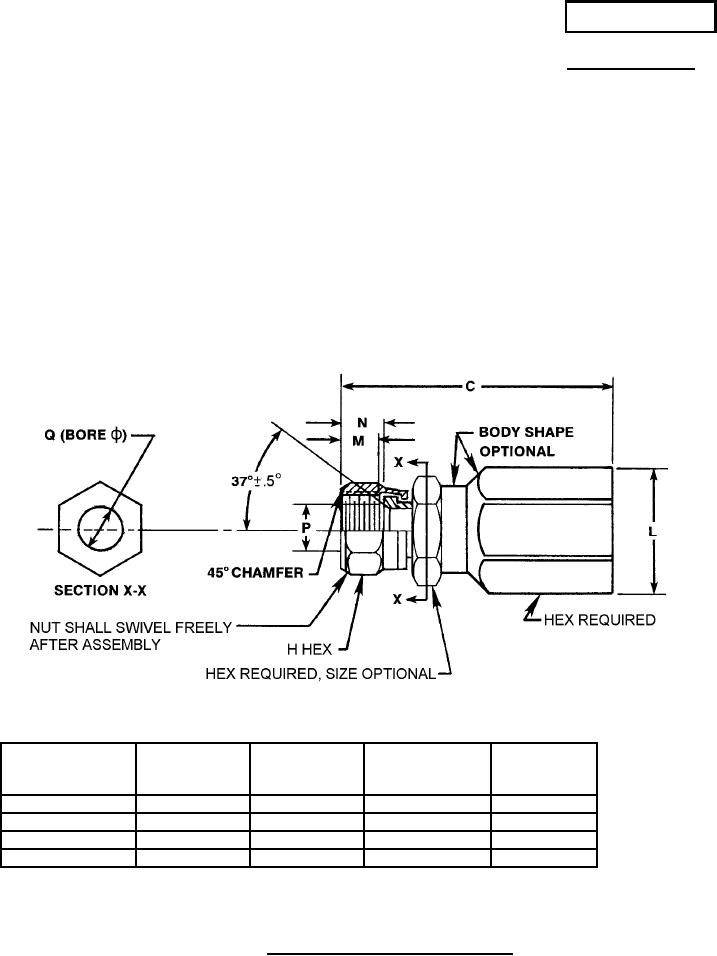

FIGURE 1. Fitting, screw-on to 37° flare, straight.
AMSC N/A
FSC 4730
