MIL-DTL-24788 Coupling Assembly, Semi-Dry-Break, Quick-Disconnect Fuel With Or Without Continuity SwitchThis specification covers the requirements for acquisition of a semi-dry-break, quick-disconnect fuel coupling assembly, with or without continuity switch used in connecting fueling nozzles to aircraft refueling hoses and refueling pantographs in aircraft refueling systems.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16


MIL-DTL-24788A

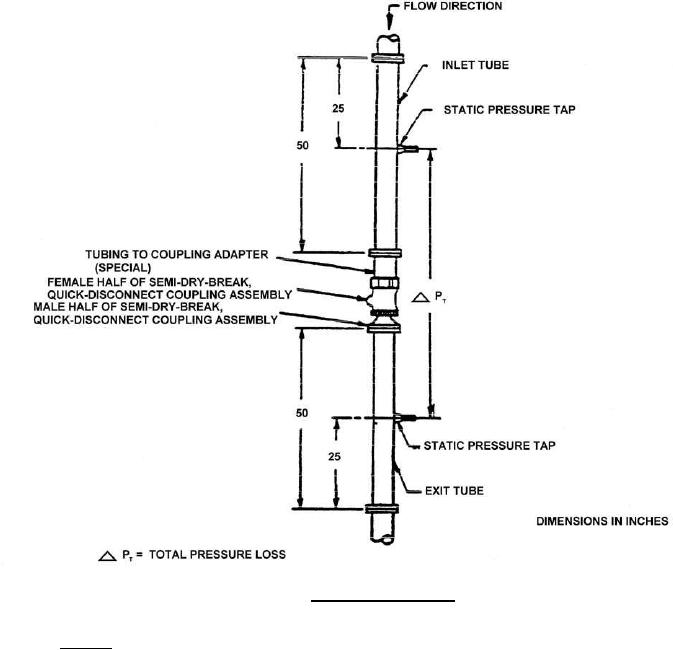

FIGURE 3. Pressure loss test set-up.
4.5.6 Strength. With the test setup as shown in Figure 4, the 90-pound force shall be applied and removed
1,000 times while a pressure of 60 PSI is maintained internally on the semi-dry-break, quick-disconnect coupling
assembly. The test fluid shall be as specified in 3.3.2. Failure to meet the requirements of 3.10.6 shall be cause for
rejection.
