INCH-POUND
AN774 Rev 8
19 July 2011
SUPERSEDING
AN774 Rev 7
4 August 1983
DETAIL SPECIFICATION SHEET
BOLT - FLARED TUBE FITTING END UNIVERSAL
Reinstated after 19 July 2011. Inactive for new design.
For new design, use SAE-AS5160.
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
SAE-AS4841.
Inches
mm
.002
0.05
.005
0.13
.010
0.25
.016
0.41
.025
0.64

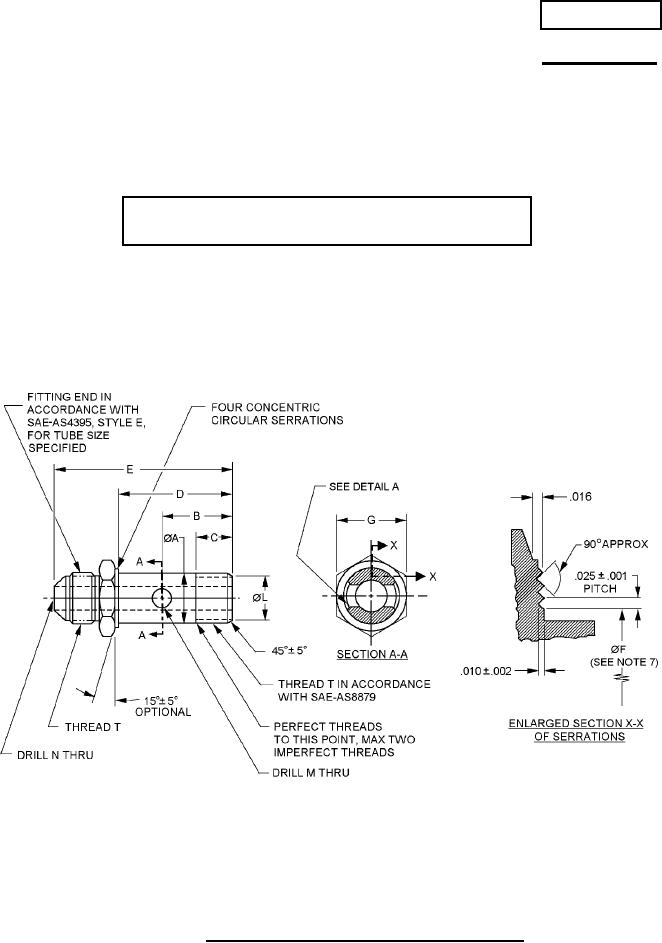

FIGURE 1. Bolt - flared tube dimensions and configurations.
AMSC N/A
FSC 4730
