INCH-POUND
MS9197D
16 February 2010
SUPERSEDING MS9197C
13 December 1972
DETAIL SPECIFICATION SHEET
NUT, TUBE COUPLING-CRES SAE-AMS5646, SILVER PLATE
This specification is approved for use by all Departments and Agencies of the Department of Defense .
The requirements for acquiring the product described herein shall consist of this specification sheet.
Inches |
mm |
.005 .010 .015 |
0.13 0.25 0.38 |

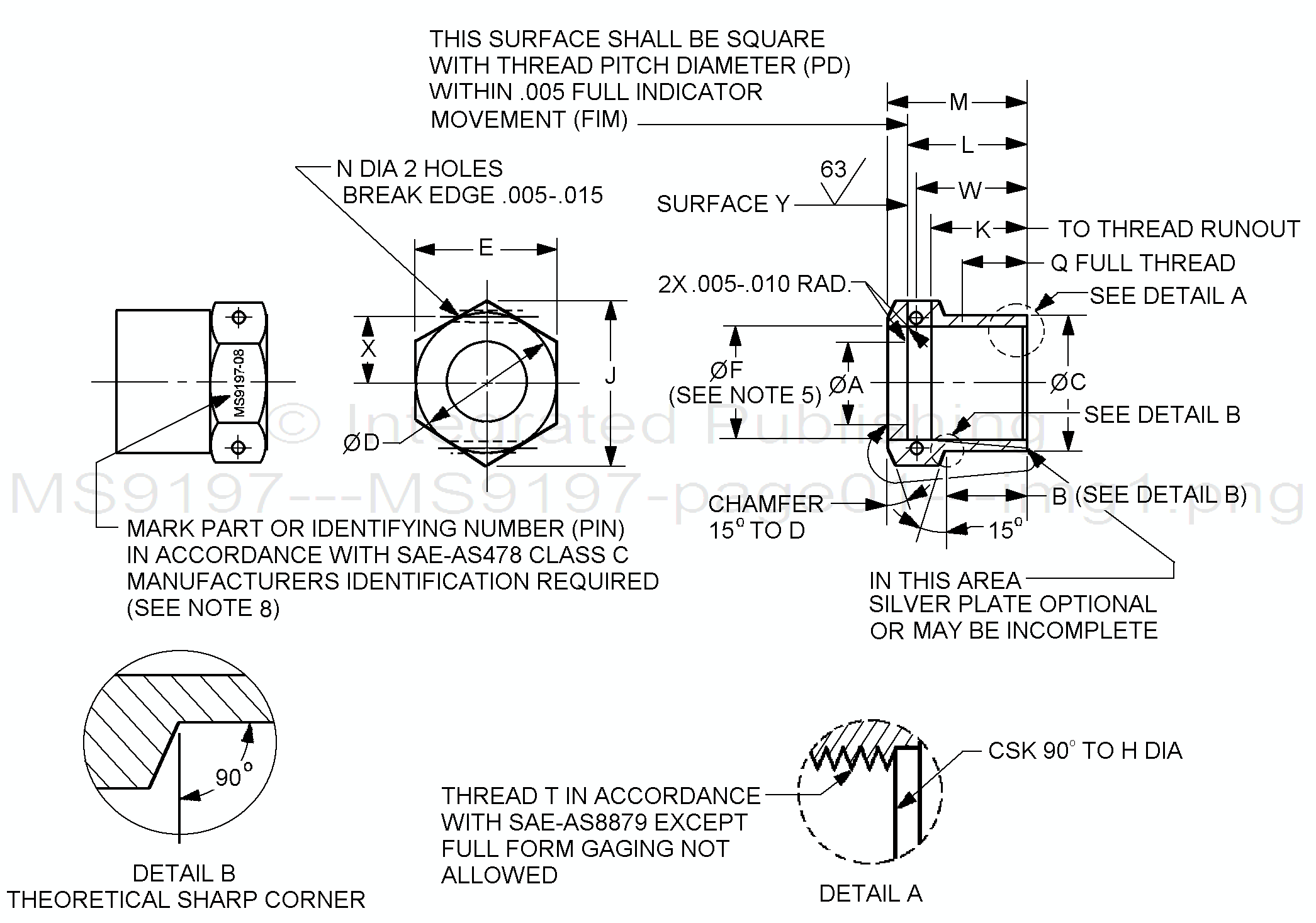

FIGURE 1. Nut, tube coupling.
AMSC N/A FSC 4730
