MS51825H
STYLE - B
Dash number style B |
A dia. ±.005 (0.13) Inches (mm) |
B dia. |
C dia. +.003 (0.08) -.000 Inches (mm) |
D ±.003 (0.08) Inches (mm) |
|
Min Inches (mm) |
Max Inches (mm) |
||||
-1 |
.203 (5.16) |
.175 (4.45) |
.178 (4.52) |
.129 (3.28) |
.278 (7.06) |
-2 |
.312 (7.92) |
.252 (6.40) |
.256 (6.50) |
.193 (4.90) |
.278 (7.06) |
-3 |
.359 (9.12) |
.309 (7.85) |
.313 (7.95) |
.255 (6.48) |
.336 (8.53) |
-4 |
.422 (10.72) |
.373 (9.47) |
.377 (9.58) |
.318 (8.08) |
.336 (8.53) |
-5 |
.484 (12.29) |
.431 (10.95) |
.435 (11.05) |
.380 (9.65) |
.375 (9.53) |
-6 |
.625 (15.88) |
.585 (14.86) |
.589 (14.96) |
.506 (12.85) |
.375 (9.53) |
-7 |
.750 (19.05) |
.698 (17.73) |
.702 (17.83) |
.633 (16.08) |
.415 (10.54) |
-8 |
.875 (22.23) |
.836 (21.23) |
.840 (21.34) |
.758 (19.25) |
.415 (10.54) |
-9 |
1.000 (25.40) |
.961 (24.41) |
.965 (24.51) |
.883 (22.43) |
.415 (10.54) |
-10 |
1.125 (28.58) |
1.086 (27.58) |
1.090 (27.69) |
1.008 (25.60) |
.415 (10.54) |
-11 |
1.406 (35.71) |
1.339 (34.01) |
1.343 (34.11) |
1.260 (32.00) |
.415 (10.54) |
-12 |
1.656 (42.06) |
1.589 (40.36) |
1.593 (40.46) |
1.511 (38.38) |
.415 (10.54) |
-13 |
2.188 (55.58) |
2.092 (53.14) |
2.096 (53.24) |
2.014 (51.16) |
.450 (11.43) |

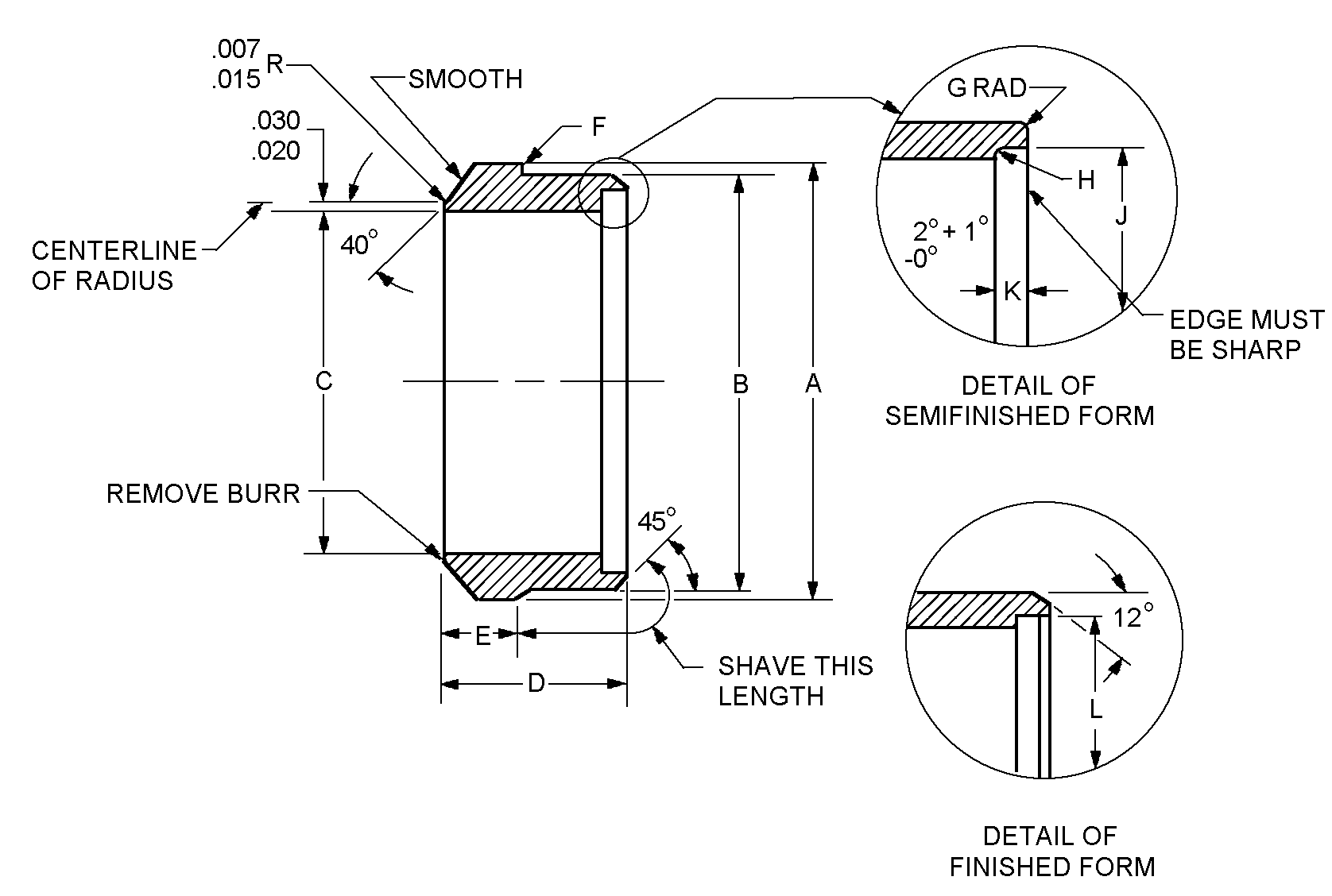

FIGURE 1. Sleeves, clinch, tube fitting - Continued.
3
