INCH-POUND
MS27390C
1 May 2013 SUPERSEDING MS27390B
24 September 2003
DETAIL SPECIFICATION SHEET
ELBOW SUBASSEMBLY, FLARELESS, 90°, FORGED, SWIVEL NUT This specification sheet is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-27272.
NOTES:
1. Dimension A, see table II, is measured between the hose end of the threaded section of the union and the centerline of the insert.
2. Dimension B, see table II, is measured between the centerline of the nipple and the free end of the insert at its centerline.
3. If required lockwire holes to be drilled on this side of subassembly in accordance with
SAE-AS1043.
4. Any forged design of adapter components to the left of plane A-A is acceptable provided the dimensions A and B and the requirements of this specification sheet and the procurement specification are met.

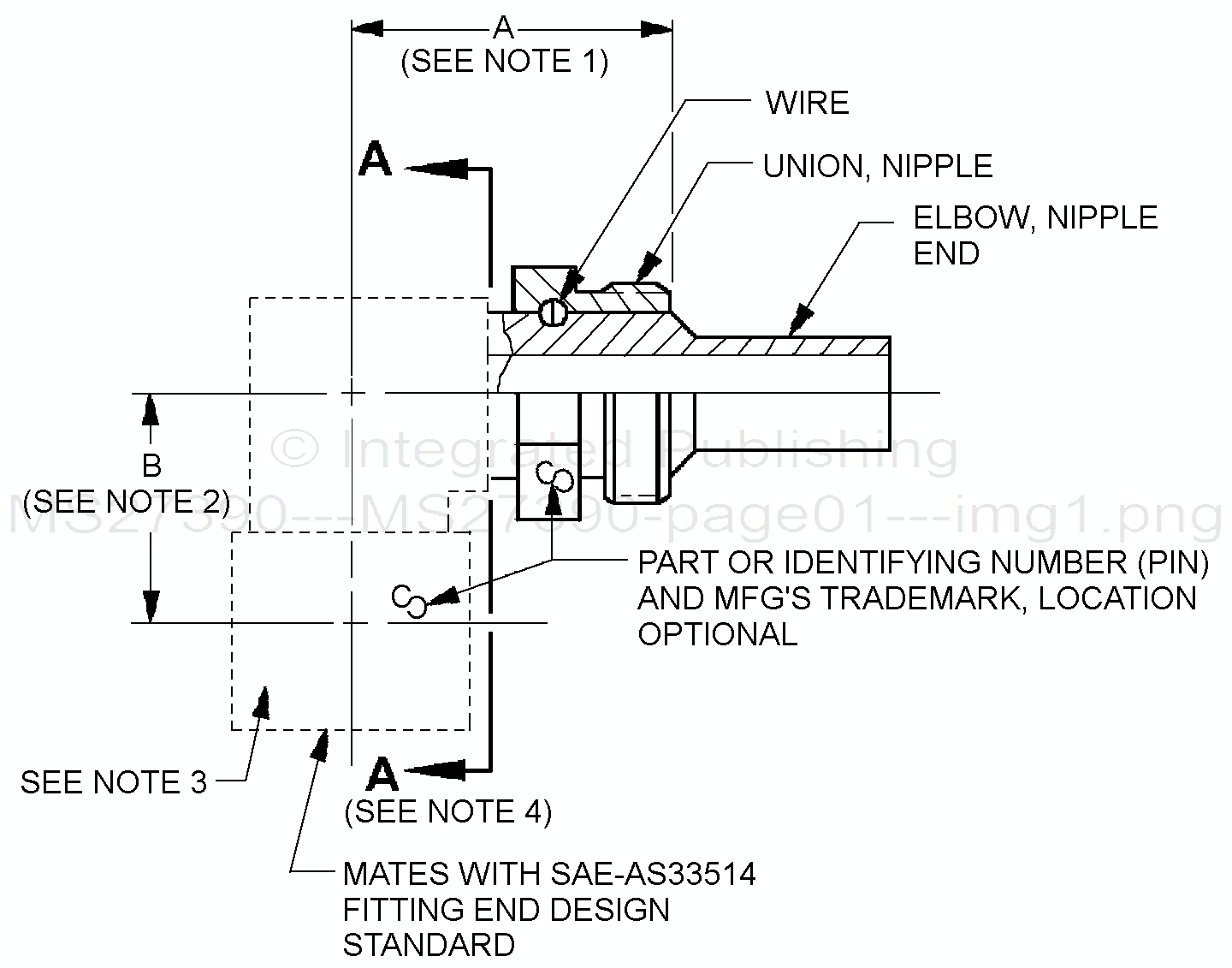

FIGURE 1. Elbow subassembly illustration.
AMSC N/A FSC 4730
