INCH-POUND
MS27384C
14 January 2014 SUPERSEDING MS27384B
24 September 2003
DETAIL SPECIFICATION SHEET
ADAPTER ASSEMBLY, FLARELESS, 45° FORGED ELBOW, TUBE TO HOSE - WITH SWIVEL NUT
This specification sheet is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-27272.
NOTES:
1. Dimension A is measured between the hose end of the socket and the free end of the radius
MS8000 series seal insert at its centerline when the socket is assembled on the nipple subassembly.
2. Lockwire holes if required in accordance with SAE-AS1043.
3. Socket may be hex or 2-flat sides.

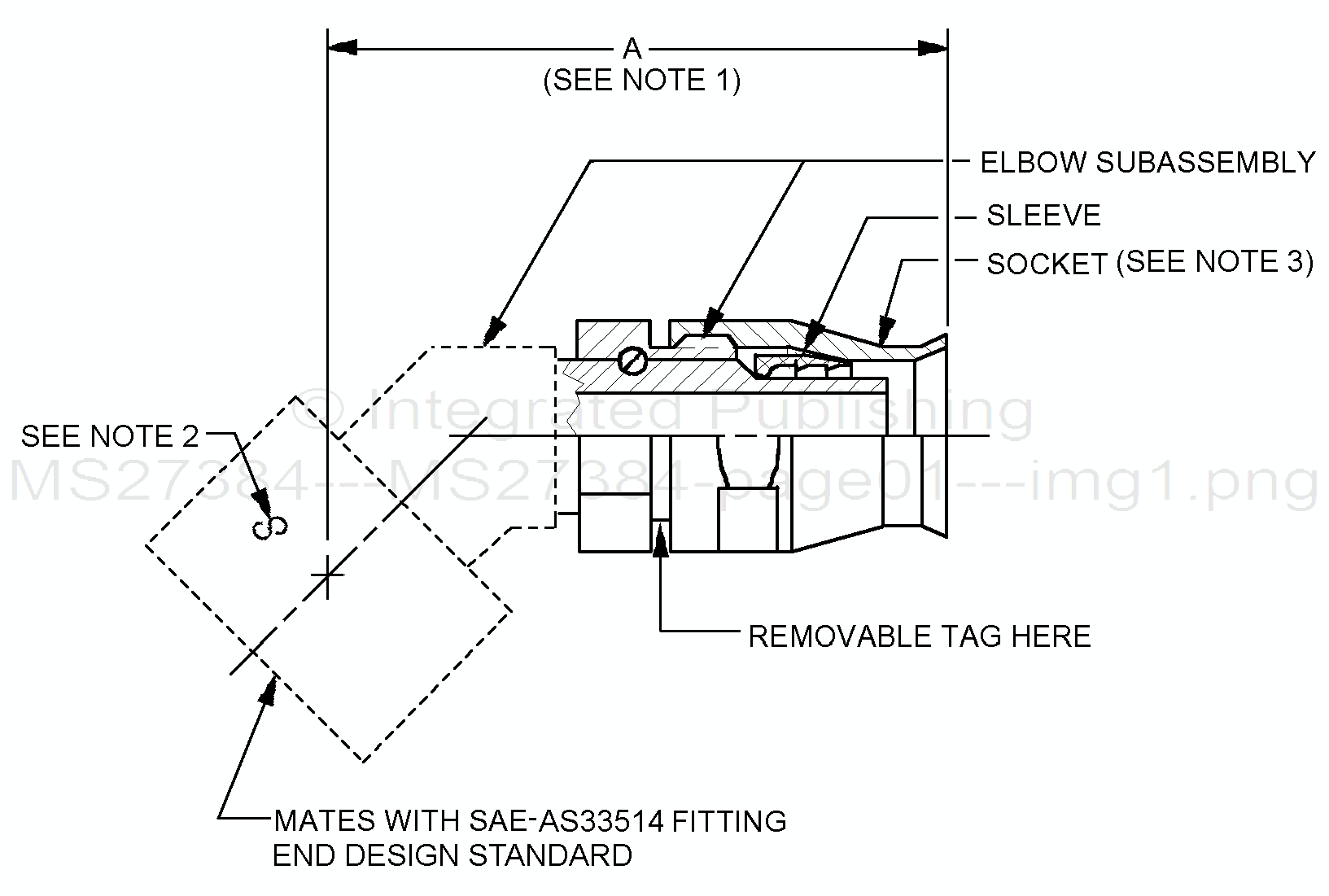

FIGURE 1. Adapter assembly illustration.
AMSC N/A FSC 4730
