INCH-POUND MS27383C
14 January 2014
SUPERSEDING
MS27383B
25 September 2003
DETAIL SPECIFICATION SHEET
ADAPTER ASSEMBLY, FLARELESS, 90° ELBOW, TUBE TO HOSE - WITH SWIVEL NUT
This specification sheet is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-27272.
NOTES:
1. Dimension A is measured between the hose end of the socket and the free end of the MS8000 series seal insert at its centerline when the socket is assembled on the nipple subassembly.
2. Socket may be either hex or 2 flat sides.
3. If required, lockwire holes to be drilled in accordance with SAE-AS1043.

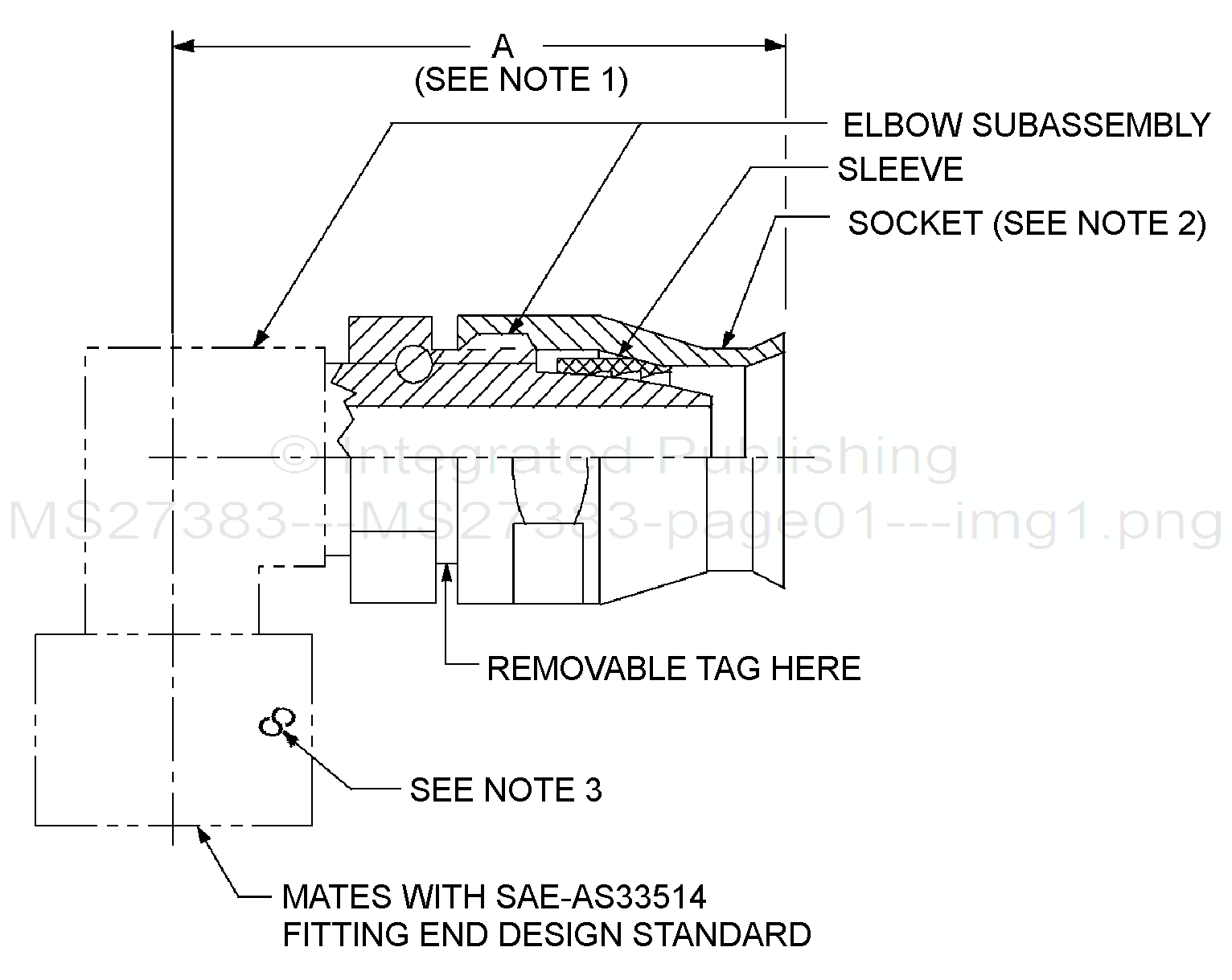

FIGURE 1. Adapter assembly illustration.
