INCH-POUND
MS27236B
14 May 2007 SUPERSEDING MS27236A
22 September 2000
DETAIL SPECIFICATION SHEET
SHOULDER - DESIGNED FOR 45° AND 90° SWIVEL NUT, HOSE TO TUBE ADAPTERS, REUSABLE, HYDRAULIC, FUEL AND OIL LINES
This specification is approved for use by all Departments and Agencies of the Department of
Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-5070.

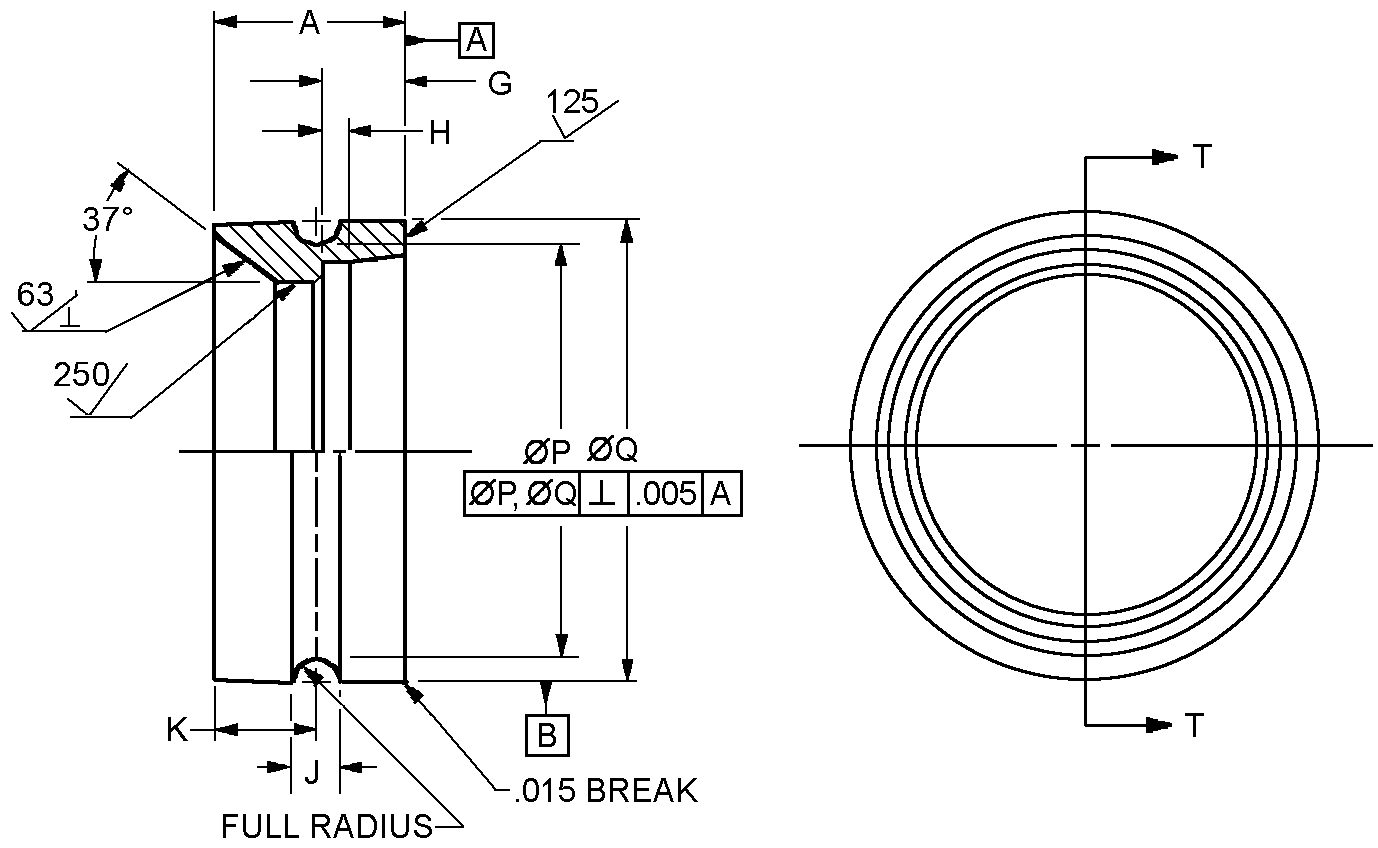

FIGURE 1. Shoulder dimensions and configuration.
AMSC N/A FSC 4730
