INCH-POUND
MS27230B
14 May 2007 SUPERSEDING MS27230A
22 September 2000
DETAIL SPECIFICATION SHEET
FLANGE ASSEMBLY 45°, ADAPTER, HOSE TO TUBE, REUSABLE, FUEL AND OIL LINES
This specification is approved for use by all Departments and Agencies of the Department of
Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-5070.

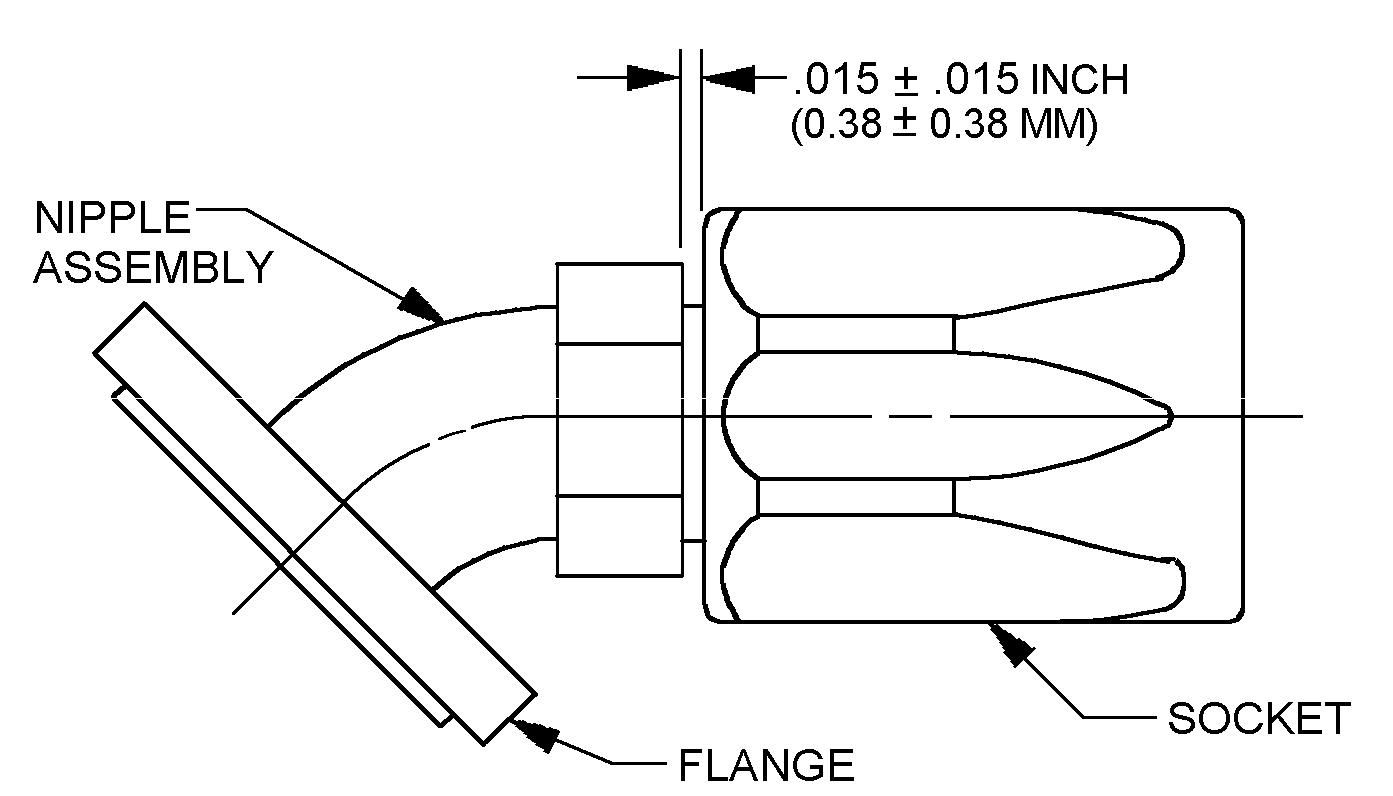

FIGURE 1. 45° flange assembly dimensions and configuration.
AMSC N/A FSC 4730
