MS270870
TABLE I. Materials and material codes.
Material code |
Material |
C |
CRES, class 304 or 321 cold drawn or cold rolled, in accordance with SAE-AMS-QQ-S-763, SAE-AMS5639 or SAE-AMS5645. |
0 |
Aluminum alloy, 6061-T6 or T651, in accordance with SAE-AMS-QQ-A-367, SAE-AMS-4117 or alloy 7075-T73, 7075-T7351 in accordance with SAE-AMS-QQ-A-225/9 or alloy 7055-T7351 in accordance with SAE-AMS-4124. |
Finish. Corrosion-resistant steel, passivate in accordance with SAE-AMS2700, method 1, type 6 or 7. Aluminum alloy. Anodize in accordance with MIL-A-8625, type II, dye blue.
NOTE: Avoid using graphite dry film lubes with aluminum nipples because in a wet environment, graphite becomes corrosive to aluminum.
0ry-film lubrication. 0ry film lubricant in accordance with figure 2 and table II.
Size and material code |
B min |
E |
||
CRES |
Al |
|||
-3/-4C |
--- |
.870 |
.25 |
±.05 |
-4C |
--- |
|||
-5C |
--- |
.890 |
||
-6C |
--- |
|||
-8C |
-80 |
1.030 |
.32 |
±.12 |
-10C |
-100 |
1.130 |
.35 |
±.15 |
-12C |
-120 |
1.240 |
||
-16C |
-160 |
1.340 |
.39 |
±.19 |
-20C |
-200 |
1.570 |
.48 |
±.28 |
-24C |
-240 |
1.720 |
.50 |
±.30 |

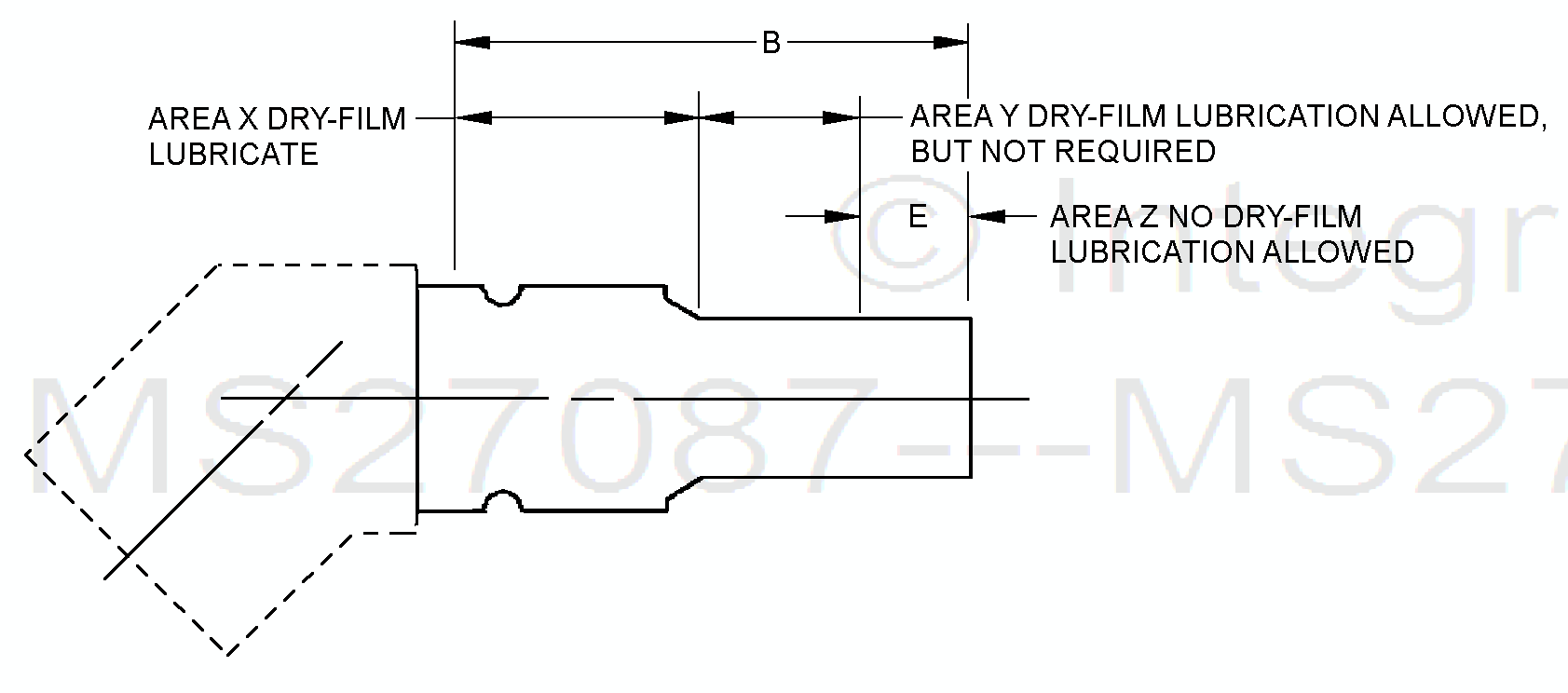

FIGURE 2. 0ry-film lubrication area.
5
