MS270860
Size and material code |
B min |
E |
||
CRES |
Al |
|||
-3/-4C |
--- |
.870 |
.25 |
±.05 |
-4C |
--- |
|||
-5C |
--- |
.890 |
||
-6C |
--- |
|||
-8C |
-80 |
1.030 |
.32 |
±.12 |
-10C |
-100 |
1.130 |
.35 |
±.15 |
-12C |
-120 |
1.240 |
||
-16C |
-160 |
1.340 |
.39 |
±.19 |
-20C |
-200 |
1.570 |
.48 |
±.28 |
-24C |
-240 |
1.720 |
.50 |
±.30 |

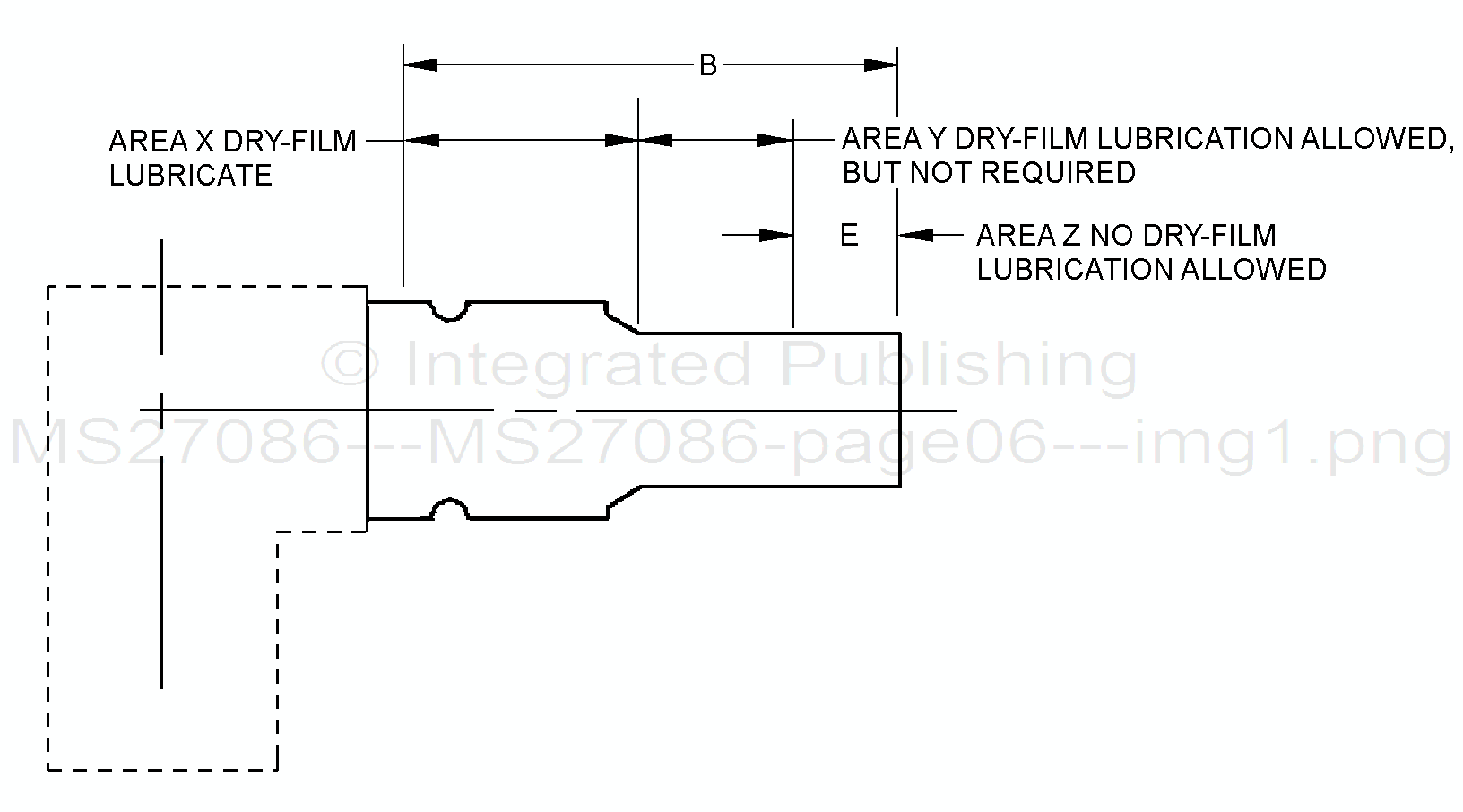

FIGURE 2. 0ry-film lubrication area.
