MS270840
Size and material code |
A min (see note 1) |
C |
0 +.005 -.000 |
|||
Corrosion resistant steel (CRES) |
Aluminum (Al) |
CRES |
Al |
|||
-8C |
-80 |
.617 |
.098 |
+.004 -.000 |
.385 |
.385 |
-10C |
-100 |
.654 |
.420 |
.427 |
||
-12C |
-120 |
.755 |
.128 |
+.005 -.000 |
.500 |
.500 |
-16C |
-160 |
.831 |
.545 |
.545 |
||
-20C |
-200 |
.881 |
.565 |
.571 |
||
-24C |
-240 |
1.035 |
.665 |
.665 |
||

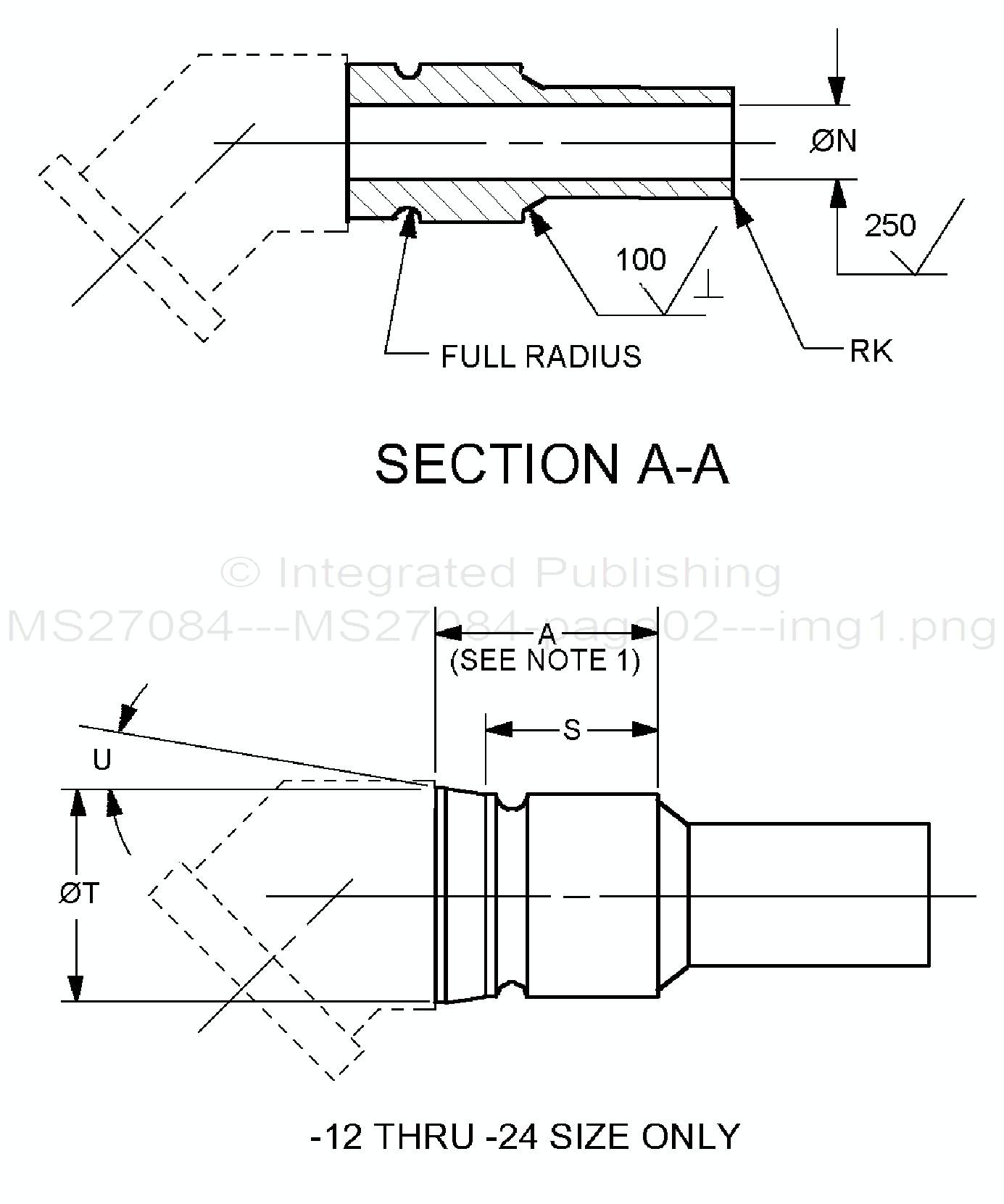

FIGURE 1. Elbow illustration - Continued.
