MS27075D
Finish. Corrosion-resistant steel, passivated in accordance with SAE-AMS2700 method 1, type 6 or
7.
Aluminum alloy. Anodize in accordance with MIL-A-8625, type II, dye blue.
NOTE: Avoid using graphite dry-film lubes with aluminum nipples because in a wet environment, graphite becomes corrosive to the aluminum.
Dry film lubricant. Dry-film lubricate CRES nipples in accordance with figure 2 and table II.
Size and material code |
u |
|
CRES |
||
-3C/-4C |
.25 |
±.05 |
-4C |
||
-5C |
||
-6C |
||
-8C |
.32 |
±.12 |
-10C |
.35 |
±.15 |
-12C |
||
-16C |
.39 |
±.19 |
-20C |
.48 |
±.28 |
-24C |
.50 |
±.30 |

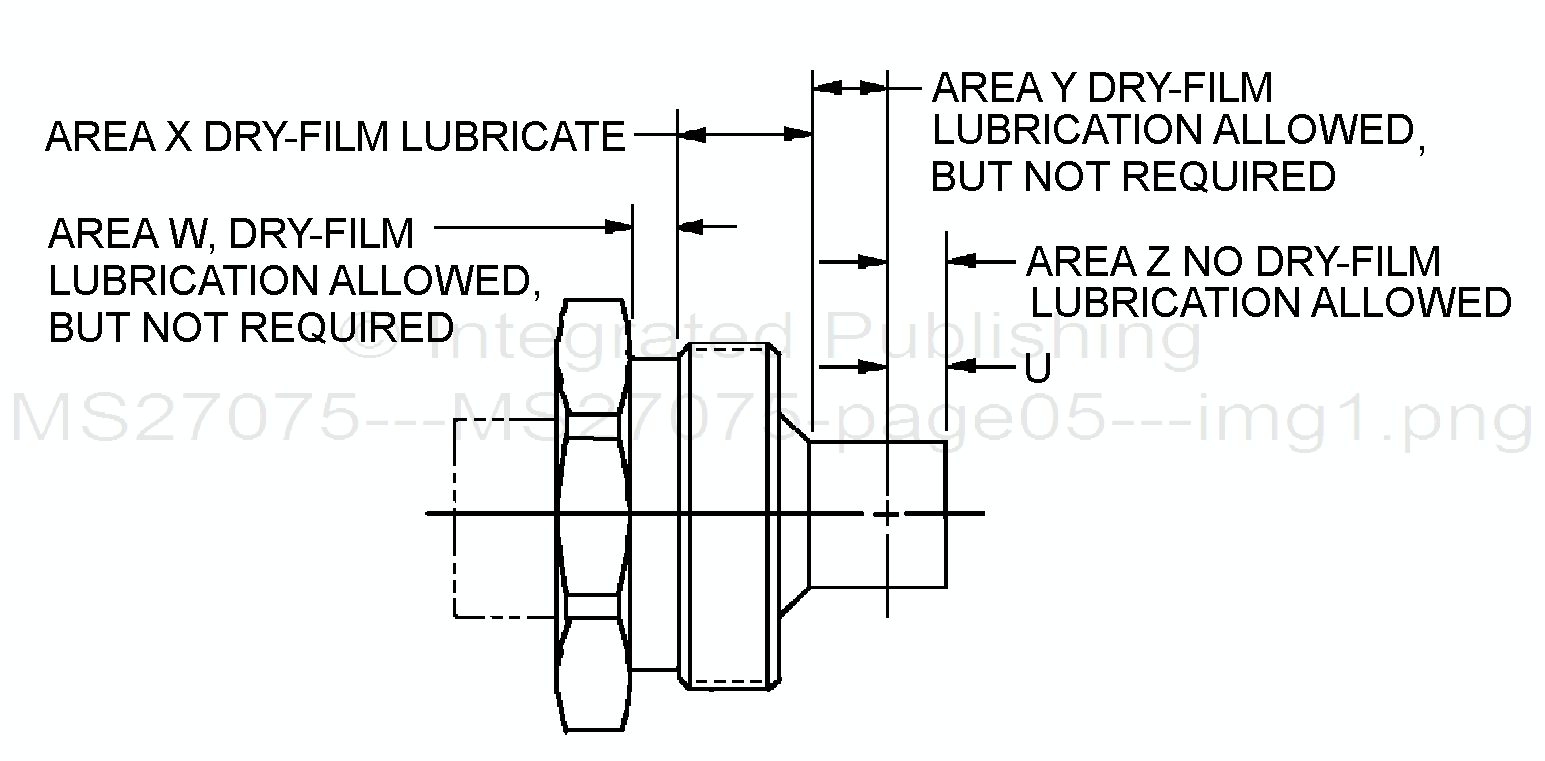

FIGuRE 2. Dry film application areas.
