INCH-POUND
MS27060E
1 May 2013 SUPERSEDING MS27060D
24 September 2003
DETAIL SPECIFICATION SHEET
ADAPTER ASSEMBLY, FLARED, 90° FORGED ELBOW, TUBE TO HOSE - WITH SWIVEL NUT
This specification sheet is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-27272.
NOTES:
1. Dimension A, se table II, is measured between the hose end of the socket and the centerline of the insert when the socket is assembled on the elbow subassembly.
2. If required lockwire holes to be drilled on this side of subassembly in accordance with
SAE-AS1043.
3. Socket may be hex or 2-flat-sides.

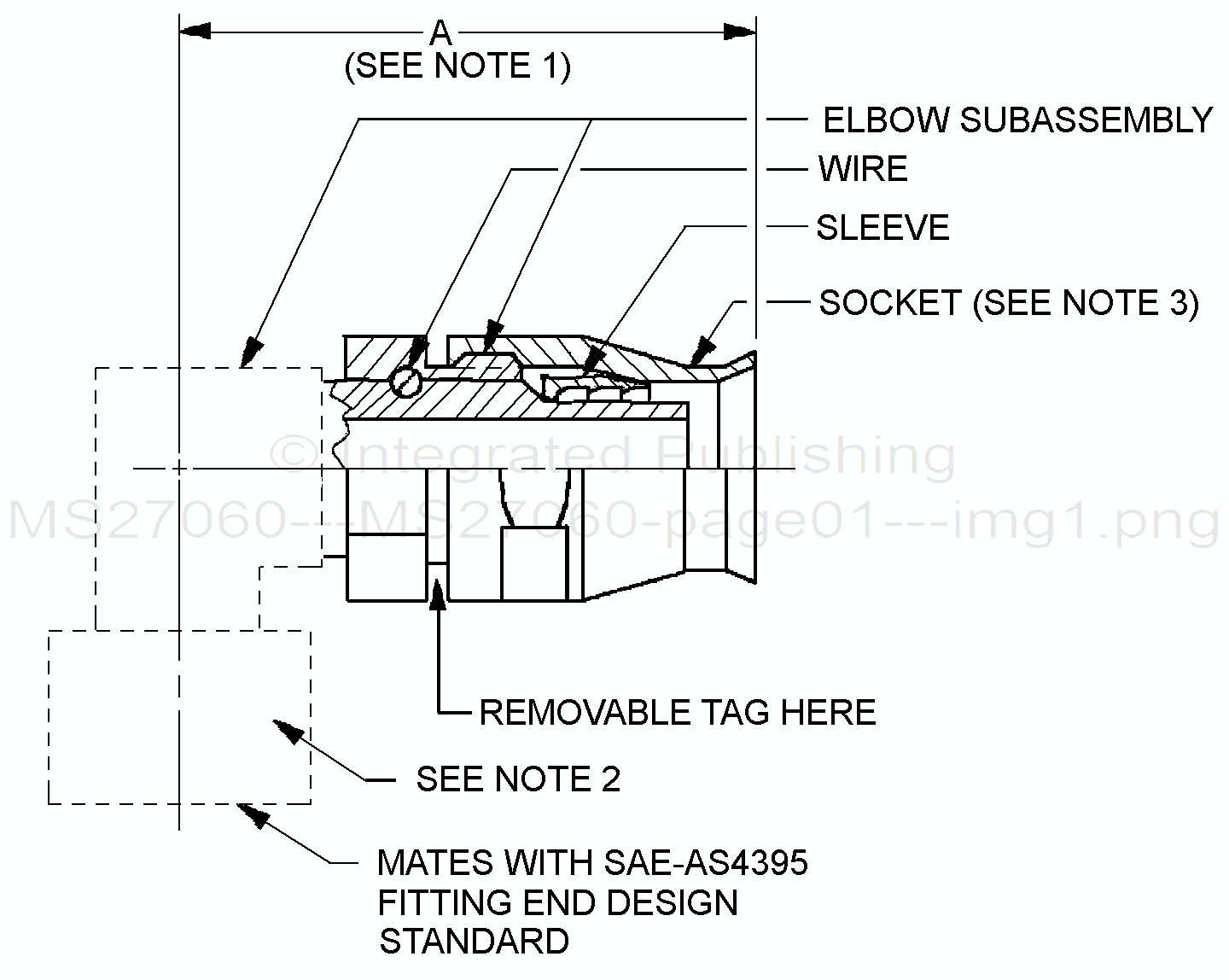

FIGURE 1. Adapter assembly illustration.
AMSC N/A FSC 4730
