MS27059E
14 March 2013 SUPERSEDING MS27059D
24 September 2003
DETAIL SPECIFICATION SHEET
ADAPTER ASSEMBLY, FLARED, 45° FORGED ELBOW, TUBE TO HOSE - WITH SWIVEL NUT
This specification sheet is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described
herein shall consist of this specification sheet and MIL-DTL-27272.
NOTES:
1. Dimension A, see table II, is measured between the hose end of the socket and the free end of the insert at its centerline when the socket is assembled on the elbow subassembly.
2. Lockwire holes if required in accordance with SAE-AS1043.
3. Socket may be hex or 2-flat-sides.

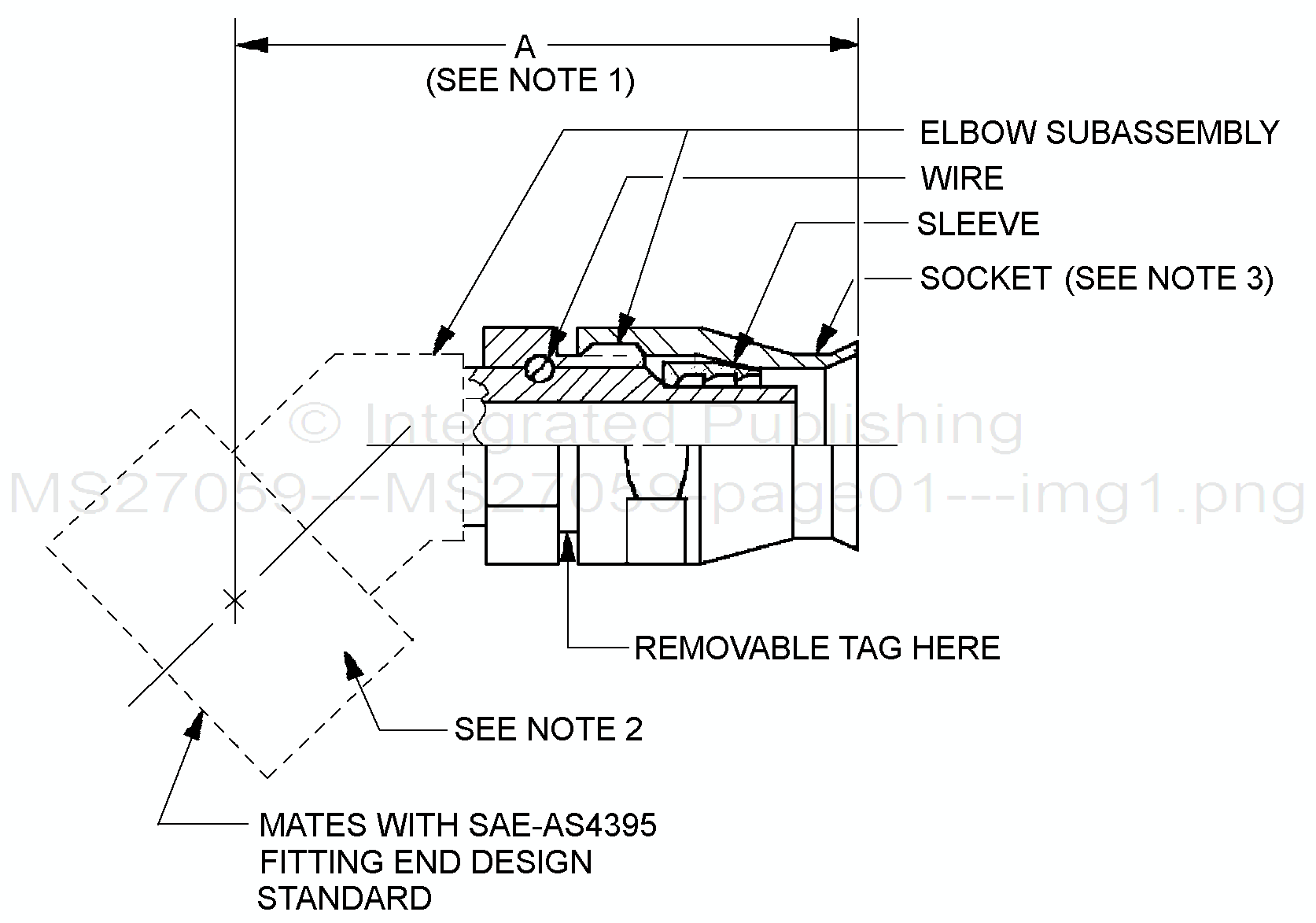

FIGURE 1. Adapter assembly illustration.
