INCH-POUND MS20761B
7 August 2014
SUPERSEDING MS20761A
11 December 1970
DETAIL SPECIFICATION SHEET
ELBOW, FLARED TUBE, FLANGED, SWIVEL, 45°
This specification is approved for use by all Departments and Agencies of the Department of Defense. The requirements for acquiring the product described herein shall consist of this specification sheet and
SAE-AS4875.
Inches |
mm |
.005 .010 .016 .062 .125 |
0.13 0.25 0.41 1.57 3.18 |

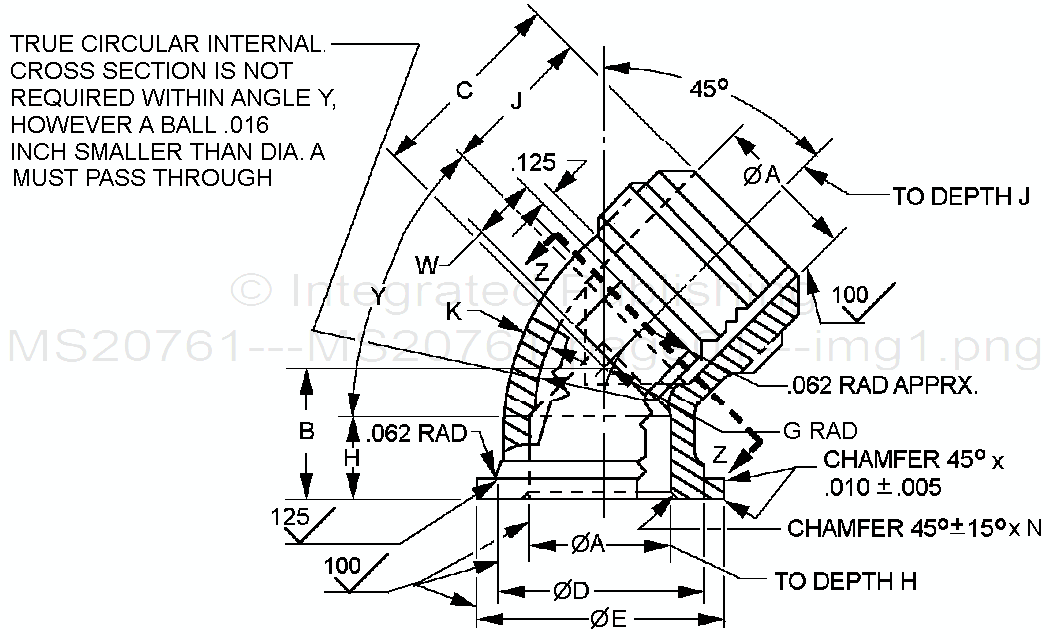

FIGURE 1. Elbow, flanged 45°.
AMSC/NA FSC 4730
