INCH-POUND
MIL-DTL-52618/5E
26 January 2012
SUPERSEDING
MIL-DTL-52618/5D
25 November 2002
DETAIL SPECIFICATION SHEET
FITTINGS, PIPE, ALUMINUM-ALLOY THREADED, 150-POUND,
90-DEGREE AND 45-DEGREE STREET ELBOWS
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-52618.

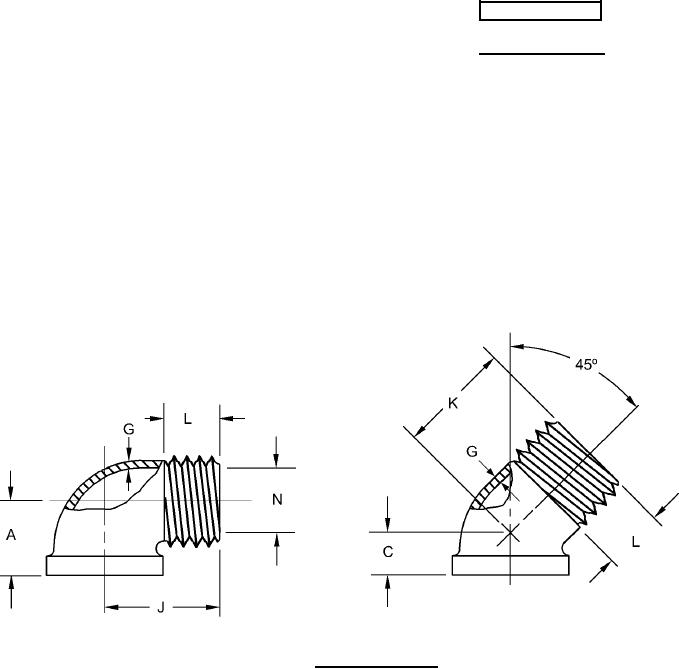

FIGURE 1. 90° and 45° elbow.
REQUIREMENTS:
The fittings shall be as specified on figure 1.
The design, dimensions, and tolerances of couplings and street elbows shall be in accordance with
ASME B16.3.
Intended use is with water, oil, or air 150 psi (1.03 MPa) max at 72°F (22°C).
Aluminum shall be in accordance with MIL-DTL-52618.
AMSC N/A
FSC 4730
